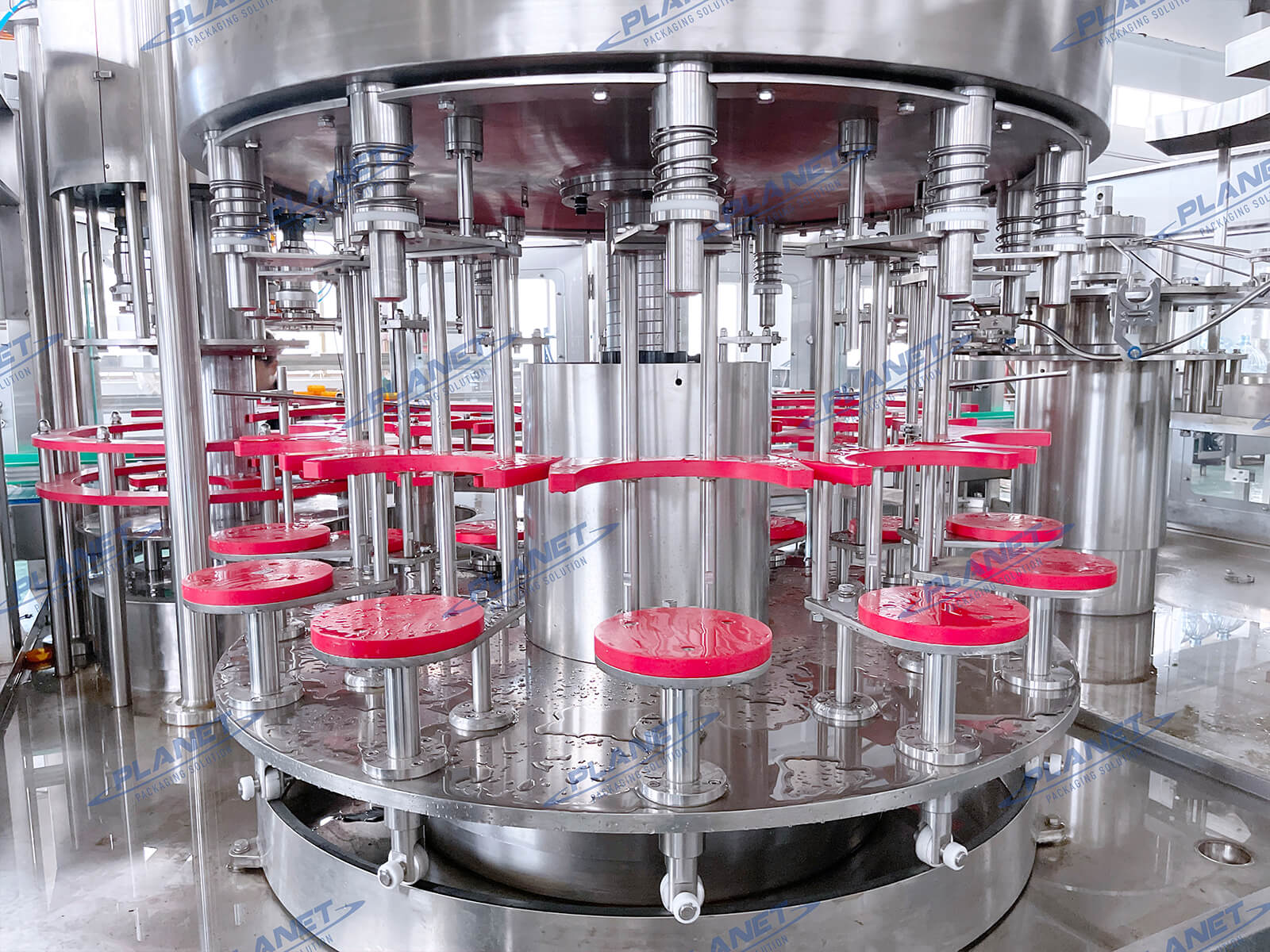

5-19L Water Filling Machine
In the rapidly growing bottled water industry, the Disposable Large Barrel Water Filling Machine redefines high-capacity production by integrating rinsing, filling, and sealing into a streamlined, automated system. Designed for 5L–19L barrels, this machine is ideal for purified water, mineral water, and functional beverages, ensuring precision, hygiene, and cost-efficiency for manufacturers aiming to scale operations while maintaining strict quality standards.
GET A QUOTE
GET A QUOTE

Share:

Description
Applicable Bottle Type
Machine layout
Video

Product Parameters

Modelwashing headsfilling headscapping headscapacityfilling typesuitable bottle sizetotal poweroverall dimension(L*W*H)Machine weight
CGF12-12-4G121241000-1500bphgravity filling

5-19L

4kw4220*3200*2450mm8500kg
CGF16-16-4G161642000-2500bph5.5kw4530*3650*2350mm9800kg
CGF24-24-6G242463000-3500bph7kw5200*4250*2450mm11000kg
CGF32-32-8G323284000-4500bph11kw5915*4250*2450mm1300kg
Project Name:  Full Automatic Complete can 1000-5000bph Production LinePure water, mineral water etc.
MaterialShapeFilling volumeFilling level(mm)Neck type
PETround or spare bottle5-19LDistance from bottle neckAccording requestAs request
Adjustable specifications of the can typeMiddle Mould Based on bottle  diameter ≤205mm can Height≤340mm
Customers need to buy additional change-over parts for the different cans.
                             If using square bottles, then bottle separating system will be added.
Container Label & Control ModePackaging systemPalletizing system

PVC Shrink Label

Full Label/ Half Label

Manual / Automaticc

Packing systemMin, Spec.Manual
                             Low position gantry palletizer
                             Robot Palletizer
                             High position gantry palletizer
                             Single Arm Palletizer
                             Manual Palletizer

Manual

Film shrinker

Wrap Around packer

Robert Packing Machine

1*2
2*2

User Ambient ConditionsTemperature:0~4ºC;70~92ºC Humidity:No dew
User Electrical Supply SpecificationVoltage:380V±5%, 3phase; Frequency:50HZ±1%


Turn-key Solution

The water filling production line produced by Planet Machinery has good stability, easy operation and supports customization.
The water filling equipment is Suitable for 350-1500ml PET bottles mineral water, drinking water, pure water etc. Different models,water filler can satisfy various requirement of output from 4000BPH to 42000BPH.,The water filling machine combines washing, filling and capping three function in a body, the whole process is automatic. Filling way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model Planet Machinery’s water filling production line output is higher and more efficient.

适用瓶型


Bottle MaterialPET
Bottle ShapeSquare,round or customized shape
Bottie Diameter50-105mm
Bottle Height160-335mm
Filling Volume100m1-2000ml


1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, thisenable the change the bottle-shaped become easier.

2. Bottles fransmissian adopt clip bottleneck fechnology, bottle-shaped transform not need to adjust the equipment level onlychange related the curved plate, wheel and nylon parts is enough.

3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.

4. High-speed large gravity flow valve filling valve, filling fast, filing accurate and no liquid lose.

5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

6. Host adopt advanced PlC autamatic control technclogy, the key electrical components from famous company such as japan's.

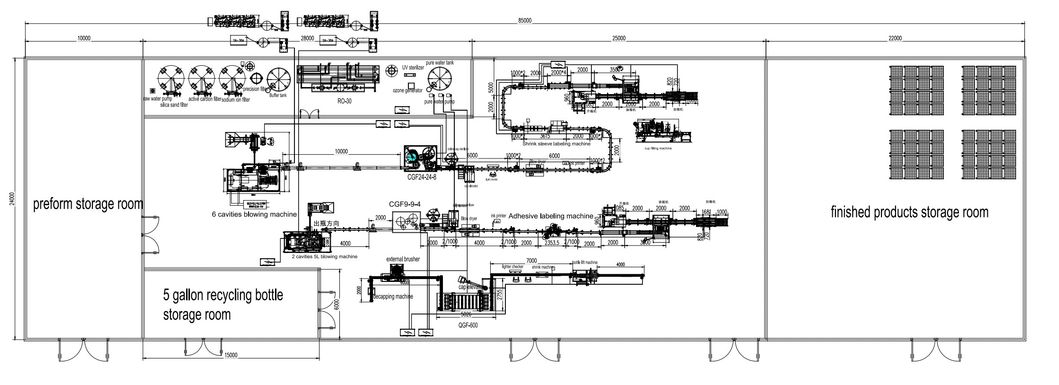

Machine layout
Air Conveyor

Air Conveyor

– Air conveyor is fixed on the floor, with fan installed on the top.

– Air filter is positioned at every entrance of air fan, to prevent dustblown into bottles.

– Bottles are held on the neck in the conveyor and transported intofilling machine by blowing power.

– All are made of stainless steel SUS 304 /316.

– Rack made by high quality carbon steel welded.

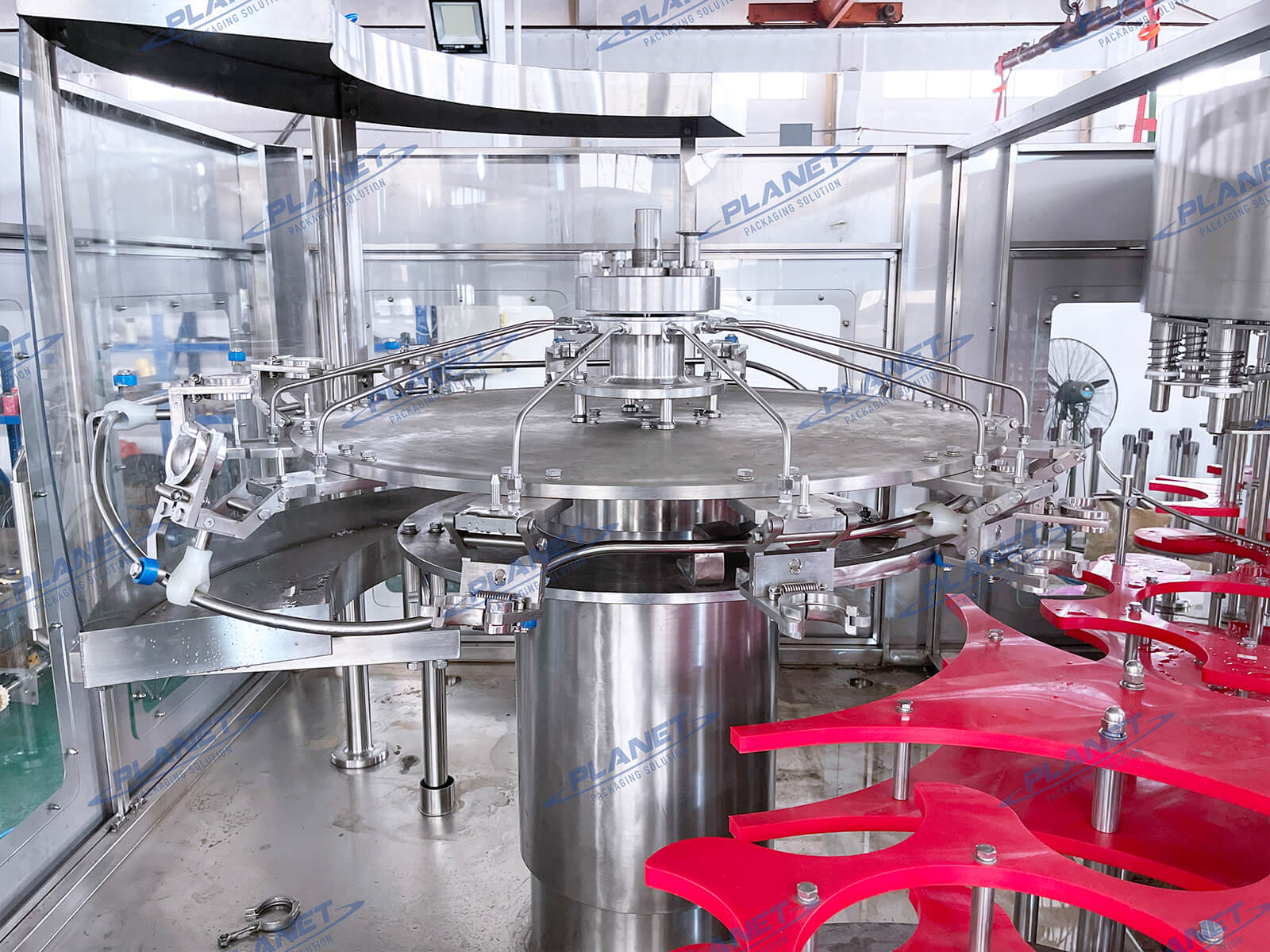

Bottle Washing

– Into bottle way is air conveyor direct connection with bottle dial.

– All 304/3l6 stainless steel rinse heads, water spray styleinject design, more save water consumption and more clean.

– 304/316 Stainless steel Gripper with plastic pad, ensure minimalbottle crash during washing.

– 304/316 stainless steel washing pump make the machine moredurable.Bottle Washing

Bottle Washing
Conventional Type Filling

Conventional Type Filling

– Filling volume adjustable in fine rank, same liquid level after filling.

– All 304/3l6 stainless steel contact parts & liquid tank, fine polish,no death corner, easy to clean.

– 304/316 stainless steel filling pump.

– Efficient spray nozzle rinse thoroughly and save water for flushing.

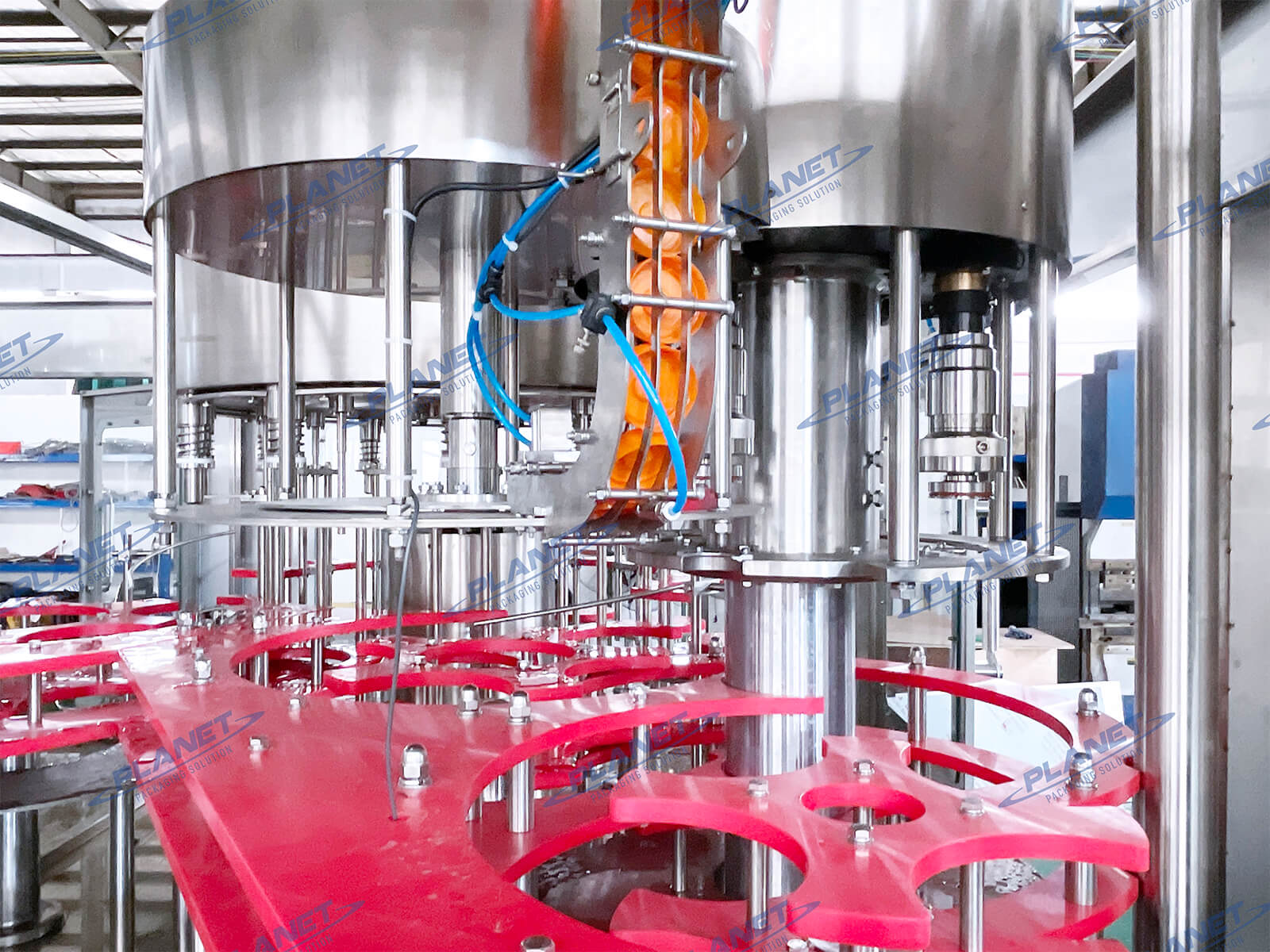

Bottle Capping.Bottle capping

– Place and capping system, electromagnetic capping heads, withburden discharge function, make sure minimum bottle crash duringcapping.

– All 304/3l6 stainless steel construction.

– No bottle no capping.

– Automatic stop when lack of bottle.

– Capping effect is stable and reliable, Defective rate ≤0.2%

Bottle Capping.Bottle capping
