Can Filling Machine

Planet Machinery specializes in the production of canning machinery manufacturers, providing a complete cans production line for small and medium-sized beverage machinery factories.

GET A QUOTE

Description

Applicable Bottle Type

Machine layout

Video

Product Parameters

Model	Filling heads	seaming heads	capacity	filling type	suitable can size	total power	overall dimension(LWH)	Machine weight
YLG12-1	12	1	1500-2000cph	Isobaric filling	250ml to 500ml	1.5kw	225014002350mm	2000kg
YLG12-4	12	4	3000-4000cph			2.2kw	243016502350mm	3000kg
YLG18-4	18	4	5000-6000cph			3kw	280019502350mm	4000kg
YLG24-4	24	4	9000-12000cph			4kw	321522602350mm	5500kg
YLG32-6	32	6	15000-18000cph			6kw	386028002350mm	6500kg
YLG45-6	45	6	22000-24000cph			11kw	430033002450mm	8000kg

Project Name:Full Automatic Complete can 2000-36000bph Production Line				CSD, Juice, energy drinks etc.
Material	Shape	Filling volume	Filling level(mm)	Neck type
Aluminum can/metal can	Square can	200-1000ml	Distance from bottle neckAccording request	As request
Adjustable specificationsof the can type	Middle Mould Basecan diameter ≤66mm can Height≤165mm
	Customers need to buy additional change-over parts for the different cans.If using square bottles, then bottle separating system will be added.
Container Label & Control Mode		Packaging system		Palletizing system
Hot Melt Roll-FedPVC Shrink LabelFull Label/ Half LabelManual / Automaticc		Packing system	Min, Spec.	ManualLow position gantry palletizerRobot PalletizerHigh position gantry palletizerSingle Arm PalletizerManual Palletizer
		ManualFilm shrinkerWrap Around packerRobert Packing Machine	122334463*5
User Ambient Conditions		Temperature:10~40ºC;Humidity:No dew
User Electrical Supply Specification		Voltage:380V±5%, 3phase; Frequency:50HZ±1%

Turn-key Solution

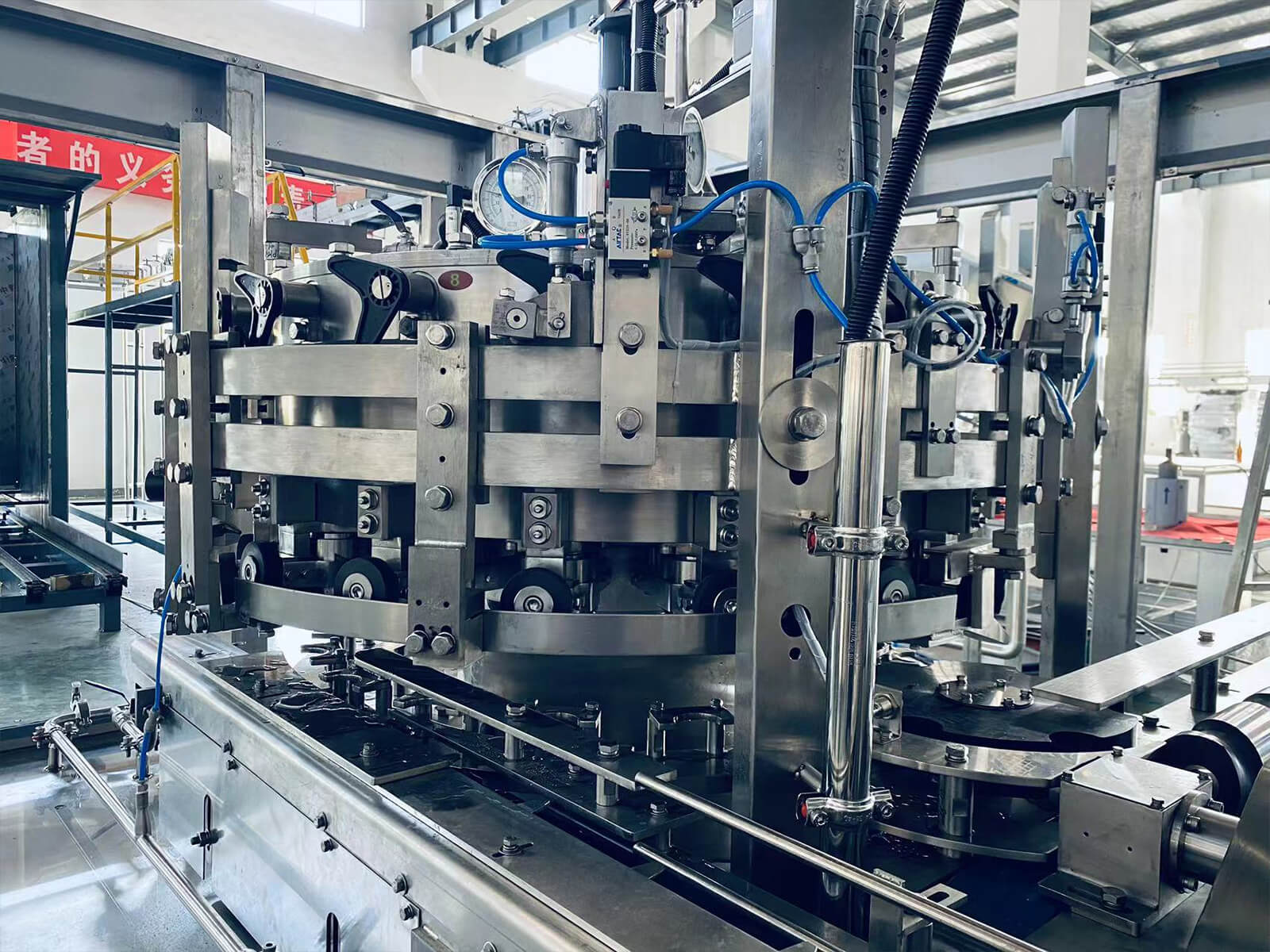

The can filling machine is an automatic filling and capping filling equipment developed and produced by Planet Machinery absorbing dvanced domestic and foreign technologies. The can filling production line has the characteristics of stable operation, good sealing quality, beautiful appearance, convenient use and maintenance, touch screen operation, and frequency conversion speed adjustment. The can filling equipment is suitable for carbonated drinks, juice drinks, beer, energy drinks, and soda water.

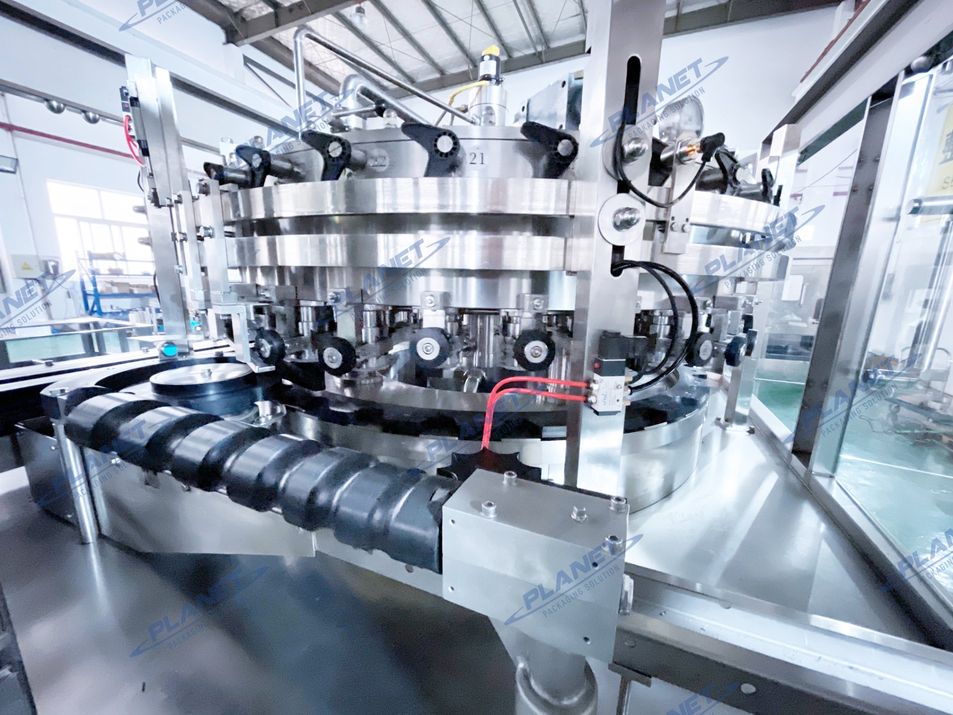

Filling Parts

The filling adopts the principle of isobaric filling, and this machine has the characteristic of no filling without cans. The filling valve adopts KHS technology with high-precision spring type mechanical filling valve equipped with cylinder solenoid valve control, which has the characteristics of fast filling speed and high liquid level control accuracy.

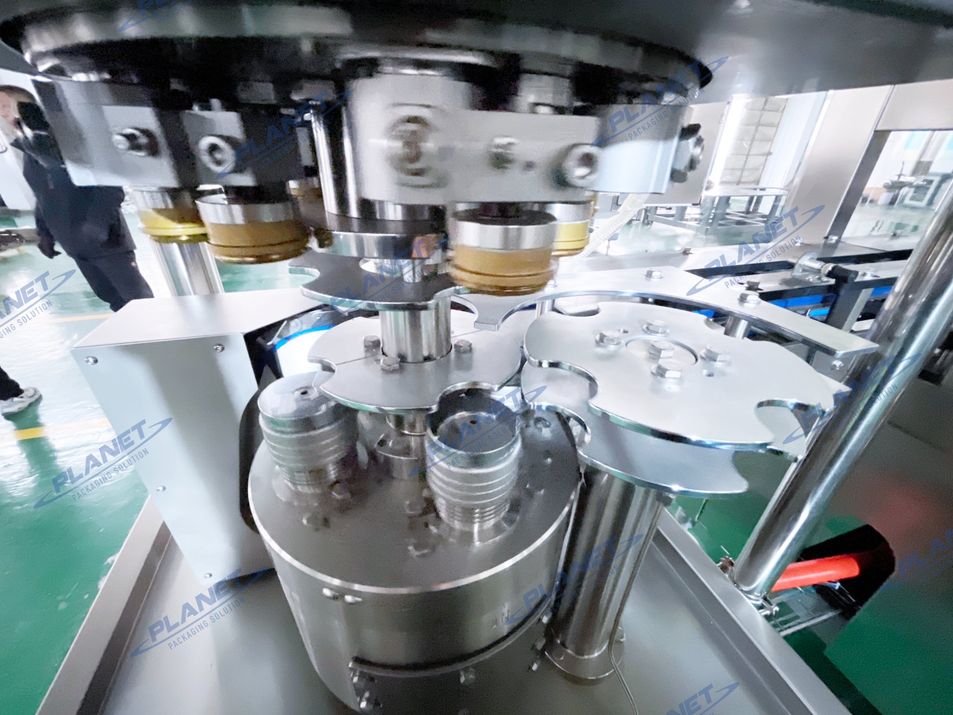

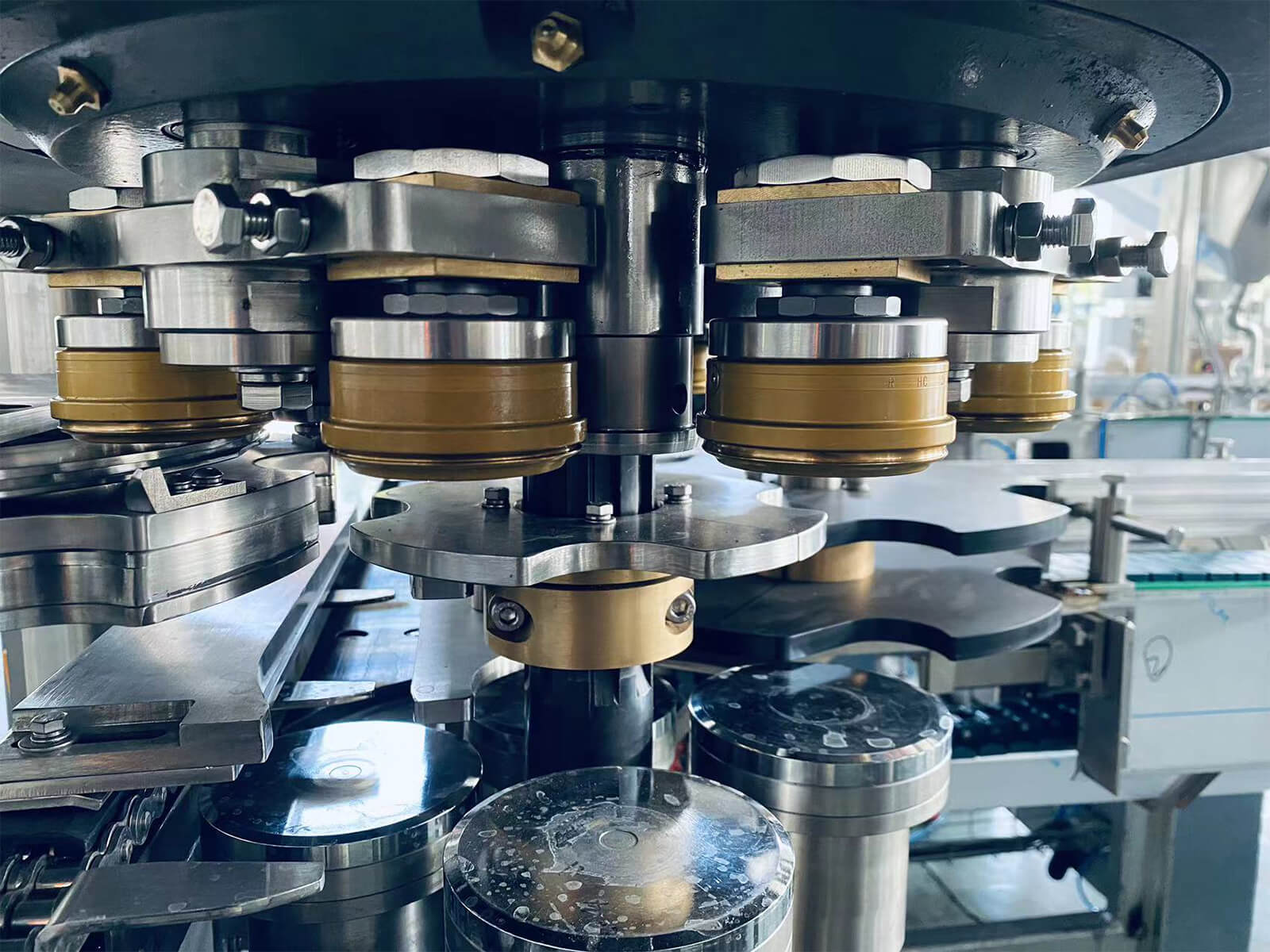

Sealing Part

The entire machine of the can sealing machine is wrapped in a 304 stainless steel shell, and the surface is polished and brushed. The overall performance is neat and beautiful. In addition, it is convenient for the workshop manufacturer to clean and tidy up afterwards

The internal structure of the can sealing machine is manufactured using Swiss Ferrum original drawings and technology, with a compact and precise structure. This model is popular both domestically and internationally, and is a classic Ferrum product. The global market has accumulated tens of thousands of units.

The highlight of our company's Ferrum technology for sealing machines is that the curve of the sealing wheel operation is fully guaranteed by the curve on the alloy steel cam, with precise fit, classic durability, and almost no vulnerable parts.

The sealing wheel used for sealing is made of 9Cr18MoV high hardness alloy steel, which is processed and formed after overheating treatment to ensure durability and longevity.
