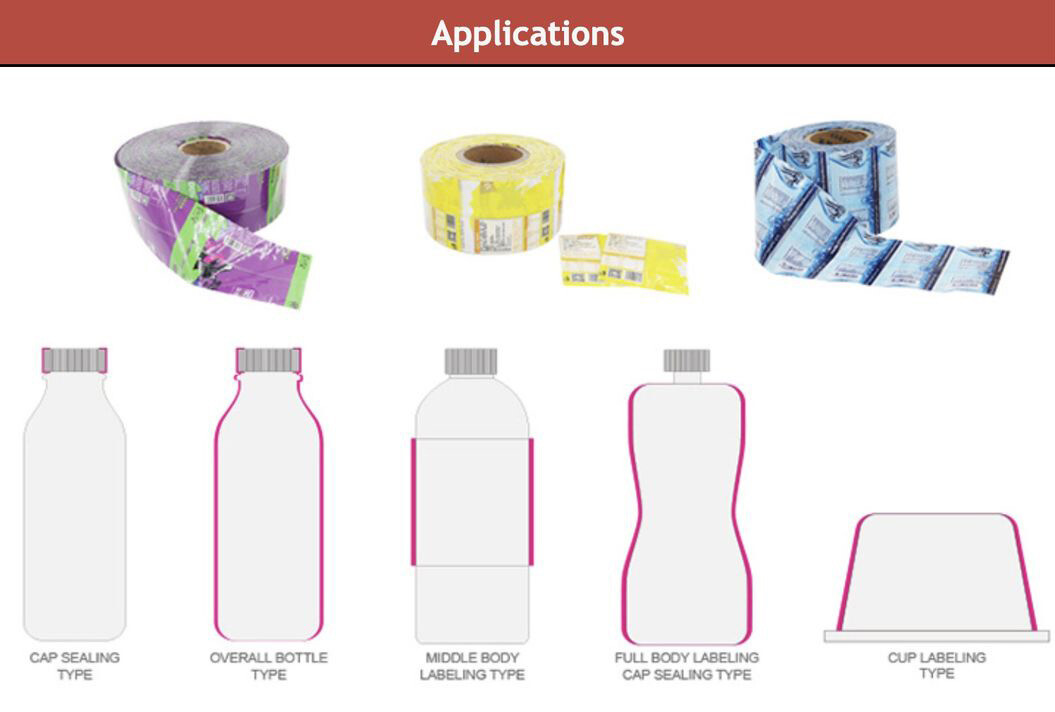

Full body sleeves, Full body over-the-cap sleeves, Partial body sleeves, Tamper evident bands, Multi-packs etc.
GET A QUOTE
GET A QUOTE

Share:

Description
Applicable Bottle Type
Machine layout
Video

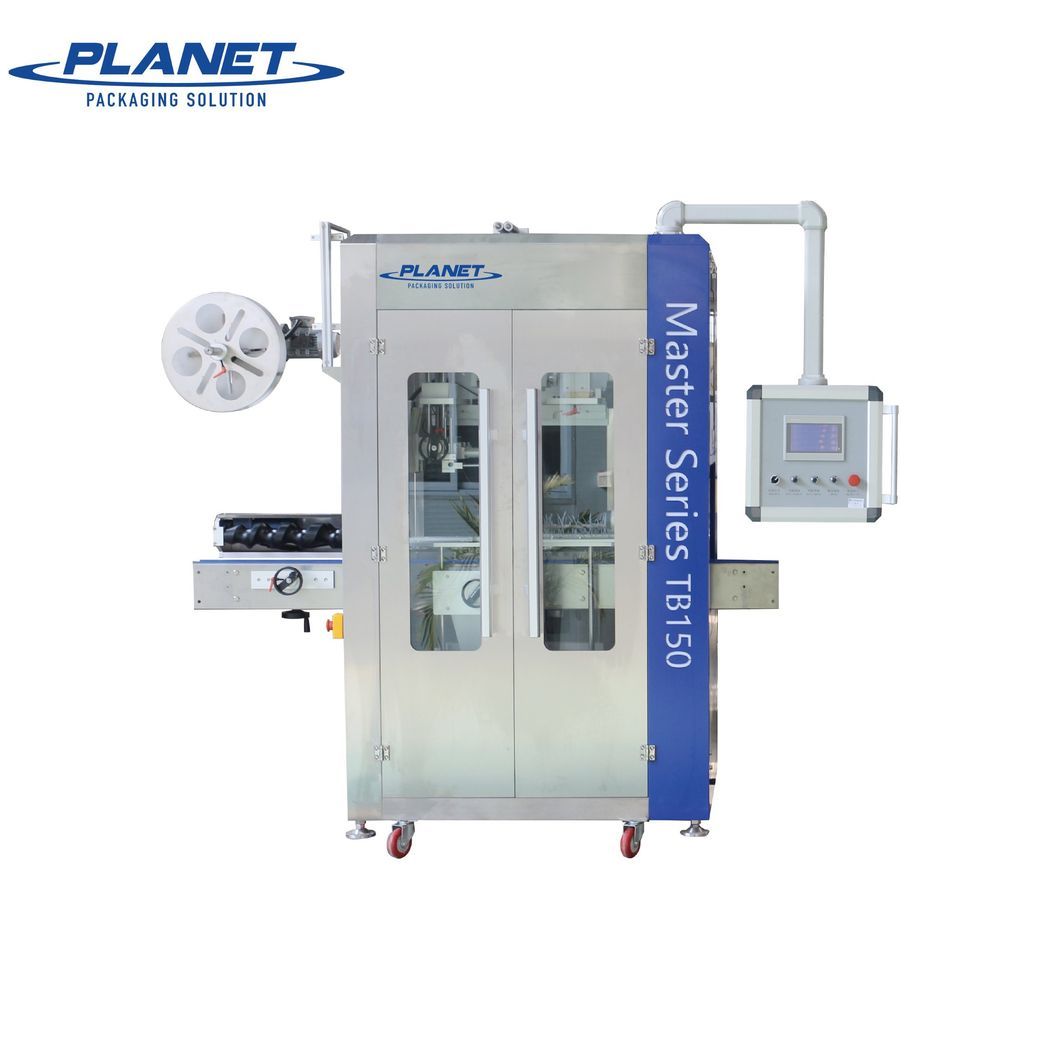

Shrink sleeve labeling machine

Shrink sleeve labeling machine

PLANET MACHINE offers a full range of shrink sleeve label applicators for low, medium, and high-speed production environments. All of our shrink material applicators are capable of performing up to five key sleeving applications:
Full body sleeves, Full body over-the-cap sleeves, Partial body sleeves, Tamper evident bands, Multi-packs etc.
Paima Packaging also offers wide label format models capable of handling label widths up to 900mm. our shrink sleeve label applicators and machine systems are used in a wide variety of industries including fluid milk, craft beer, ready-to-drink beverages, cosmetics, home care products, and personal care products. Their flexibility and reliable performance make them one of the best values in the shrink sleeving industry.


Product Parameters

ModelPM-150PM-250PM-250DPM-300PM-400
Capacity(On the baselabel length:500ml)150 bottles/min250 bottles/min250 bottles/min300 bottles/min400bottles/min
Label heights30~250mm30~250mm30~250mm30~250mm30~250mm
Bottle diameter28~125mm28~125mm28~125mm28~125mm28~125mm
Thickness of label0.03~0.13 mm0.03~0.13 mm0.03~0.13 mm0.03~0.13 mm0.03~0.13 mm
Label materialPVC/ PETPVC/ PETPVC/ PETPVC/ PETPVC/ PET
Machine weight550KG600KG700KG800KG950KG
Overall machine size(mm)2100x850x21002100x1100x2100

3200x1200x2070

2600x1100x2200

2600x1100x2200


Applications

Pharmaceutical & Healthcare Industry

Pharmaceutical & Healthcare Industry

Suitable : Medicine, Health products
Bottle Material : PET / PE / Glass / Metal
Bottle Type : Round / Square / Unique
Label Material : PVC/PET Shrink Label


Food & Beverage Industry

Food & Beverage Industry

Suitable: Bottled water, yogurt cup, canned food etc

Bottle Material : PET / PE / Glass / Metal

Bottle Type : Round / Square / Unique

Material : PVC/PET Shrink Label

Daily chemical & Beauty Industry

Daily chemical & Beauty Industry

Suitable : Daily chemical products, comestic products etc

Bottle Material : PET / PE / Glass / Metal

Bottle Type : Round / Square / Unique

Label Material : PVC/PET Shrink Label

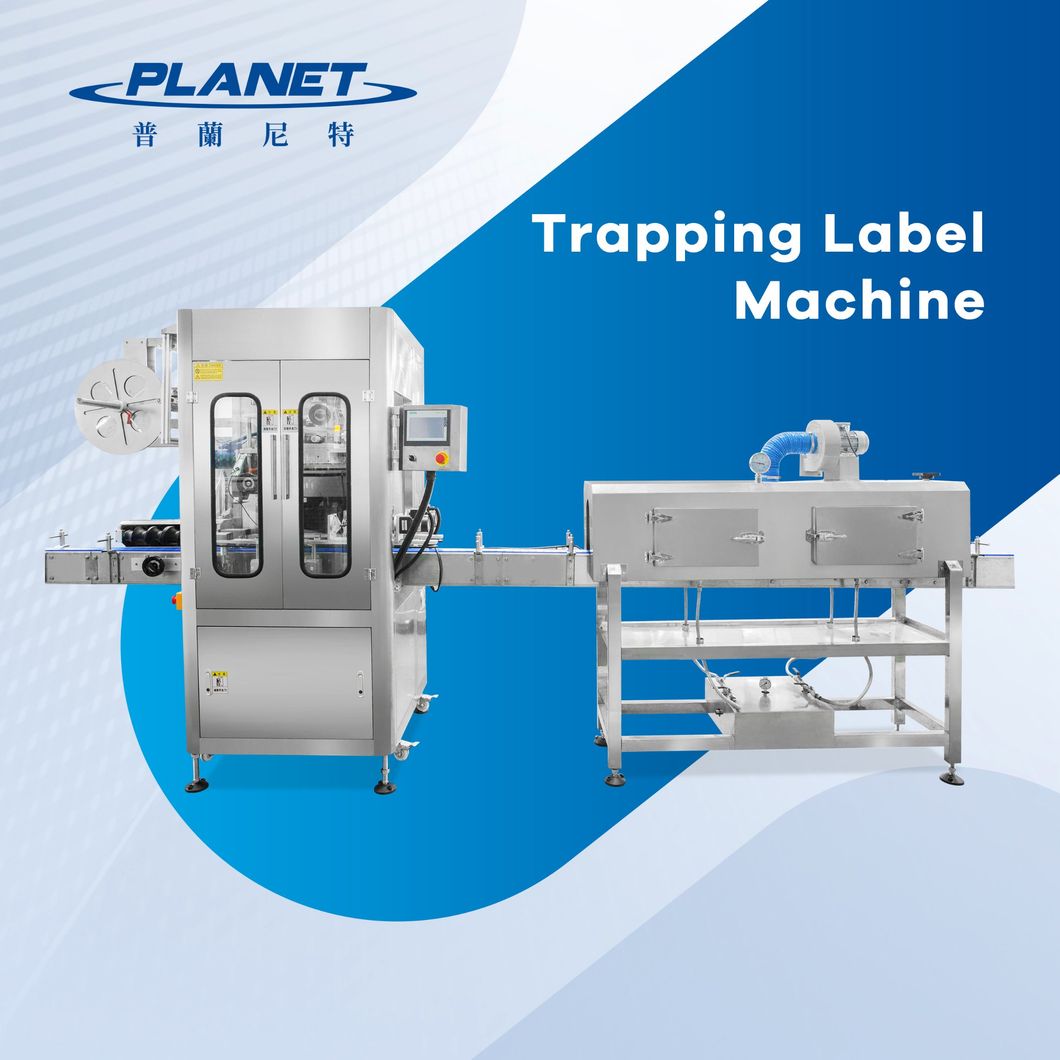

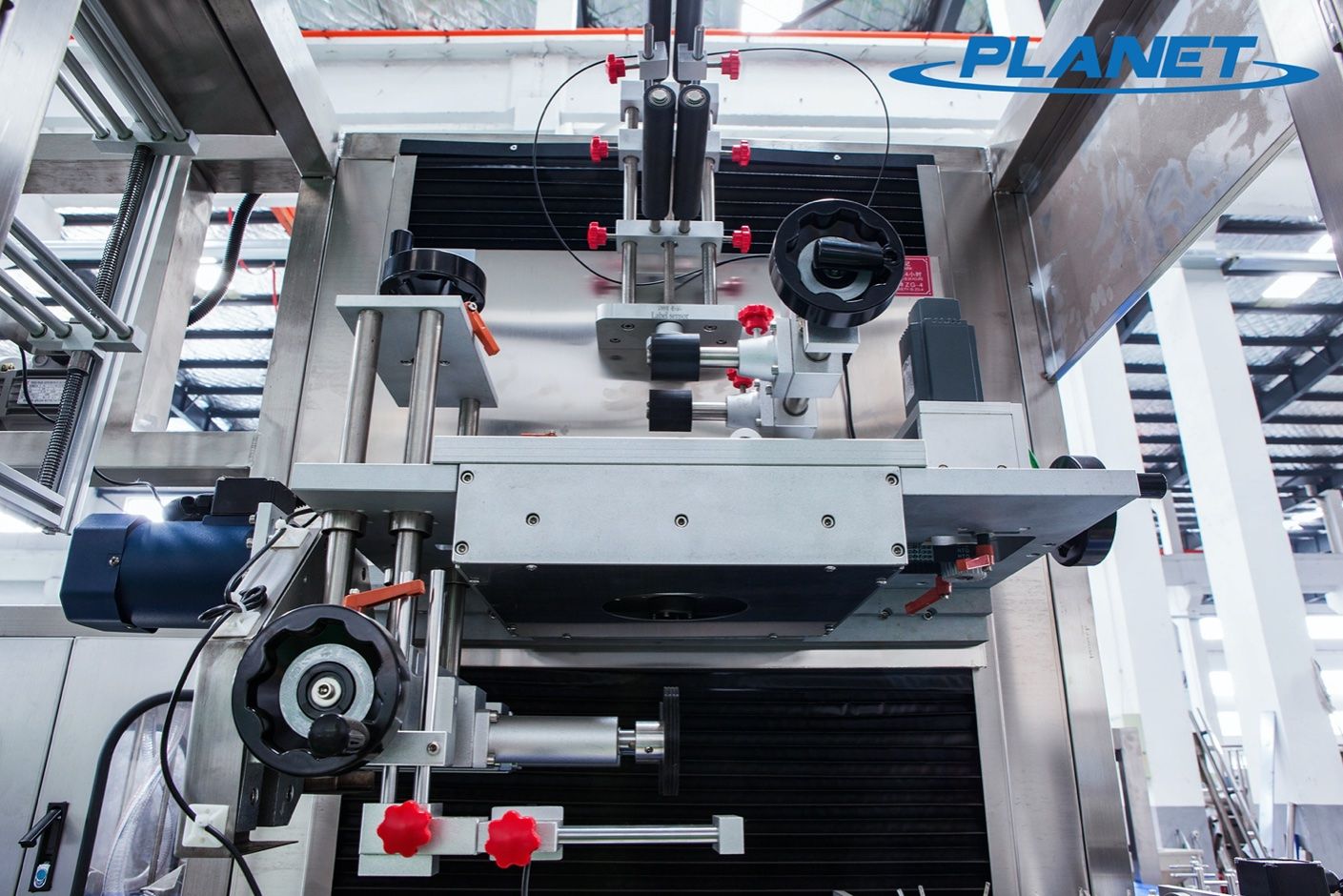

Overview of shrink labeling machine

Overview of shrink labeling machine

(1) PM-series Sleeve Labeling Machine is custom built to meet the exacting demands of manufacturers and suppliers. It can be used stand alone or integrated in-line and matching filling equipment speeds.
(2) It is built upon a framework of seam welded, food grade stainless steel section. This solid foundation keeps movement and vibration to an absolute minimum to ensure consistent, accurate labeling.
(3) Unit cutter head plane design in China which apply to the container of ∮30 mm-∮130 mm. you never need to change or debug it.It also has unique light touch human-machine screen,that means,auto search original location as well as safety and convenience which is ahead of other congener products.

(4) Double shrinking label feed plane, reasonable height which is convenience to fix the label; micro-computer auto figure which avoid enactment and adjustment. you only need to press it lightly ,the label will detect and locate automatically.The change of label is quick and convenience, besides,the cut place is absolutely exact.

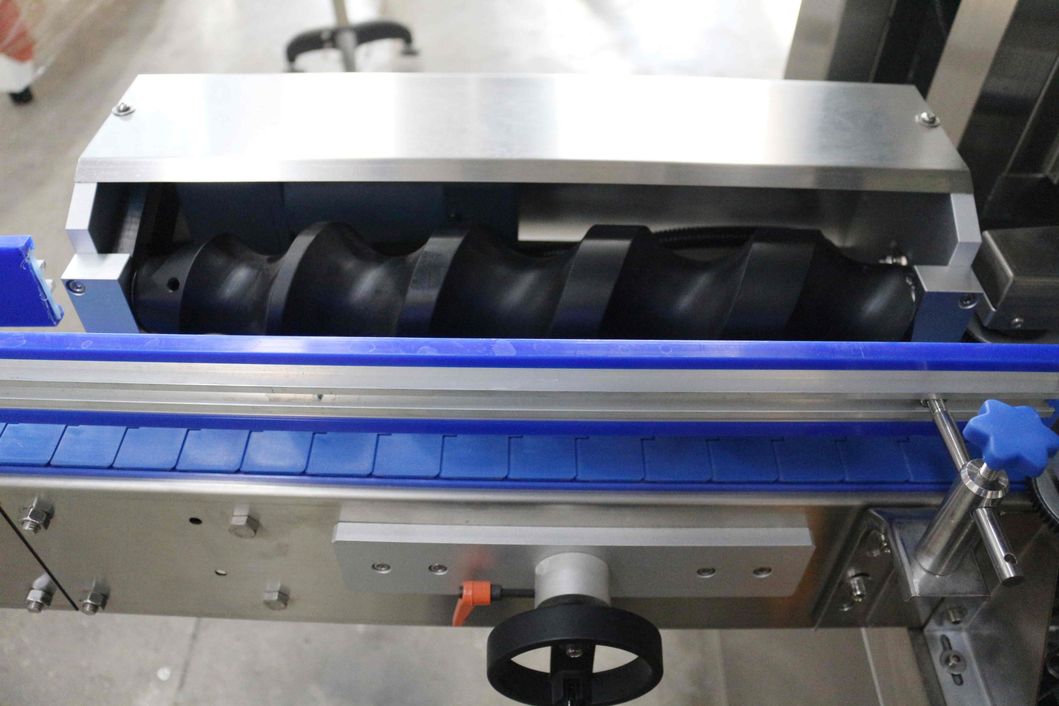

Separating Screw

Put the label on the bottle, and use the fixed-distance conveying of the screw to separate the bottles at equal distances to facilitate the labeling.

Separating Screw

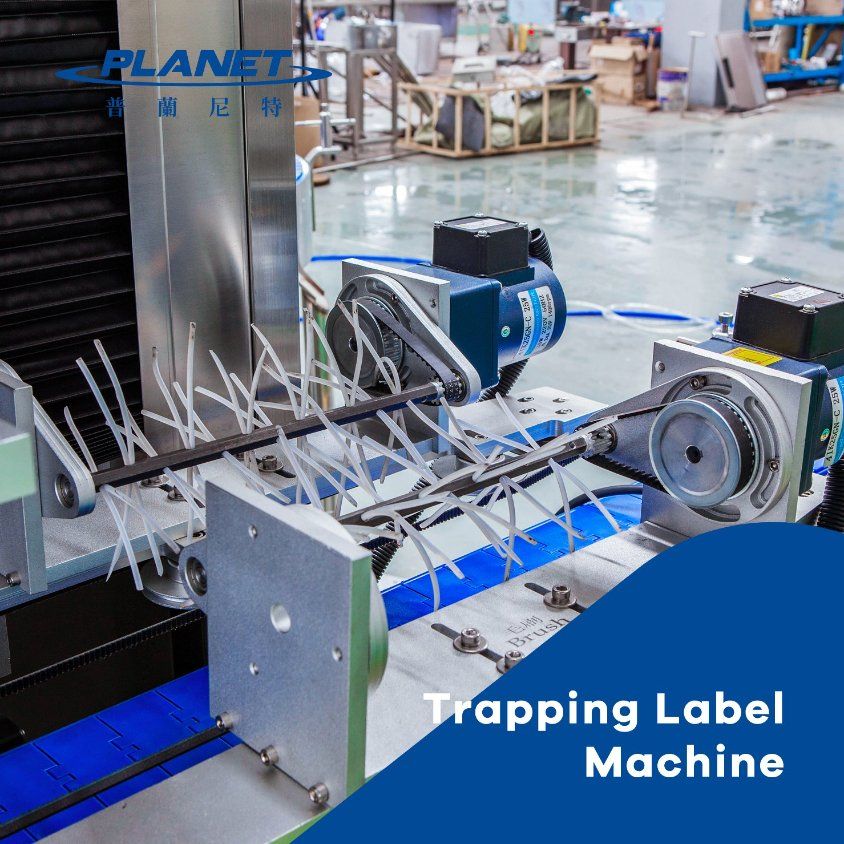

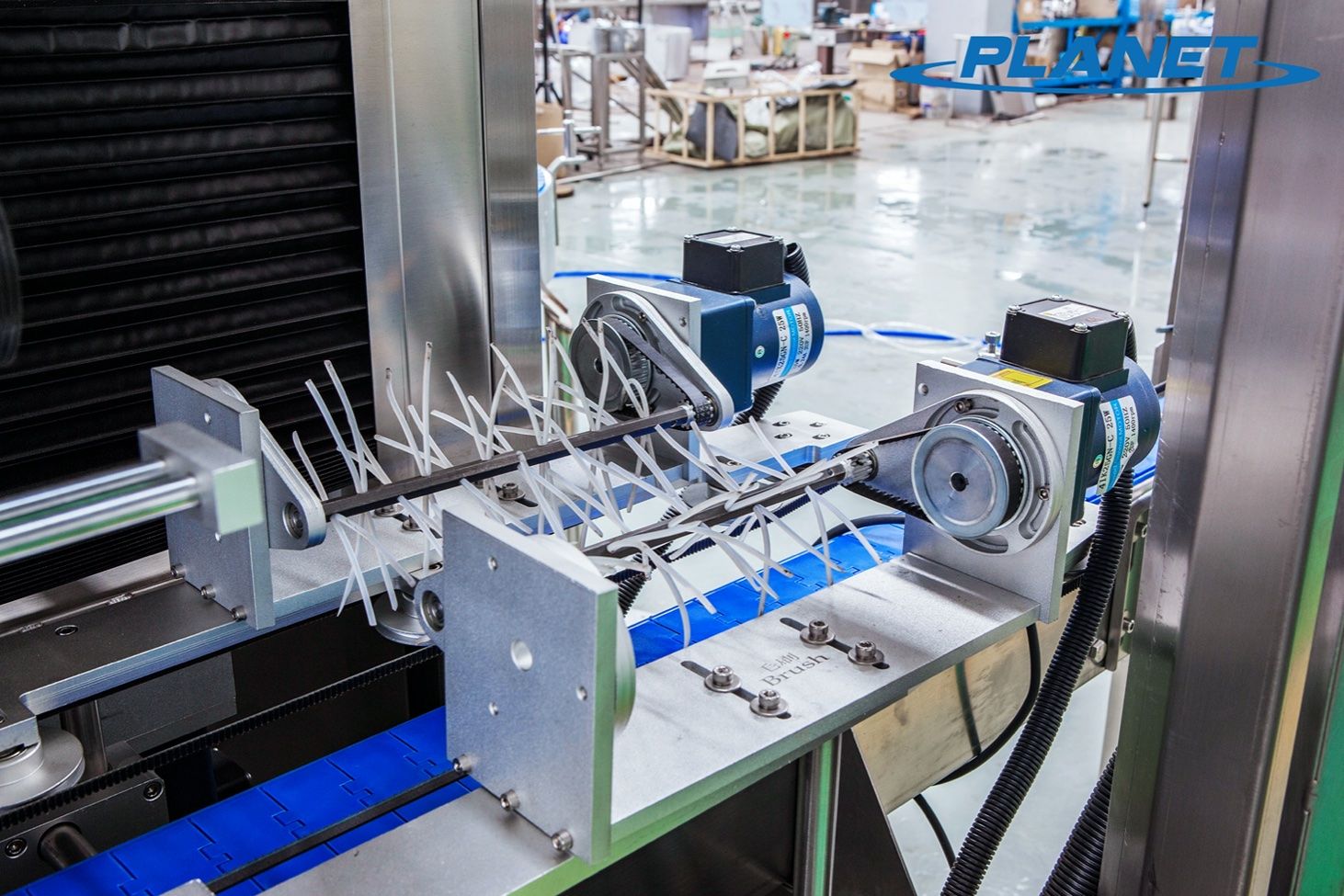

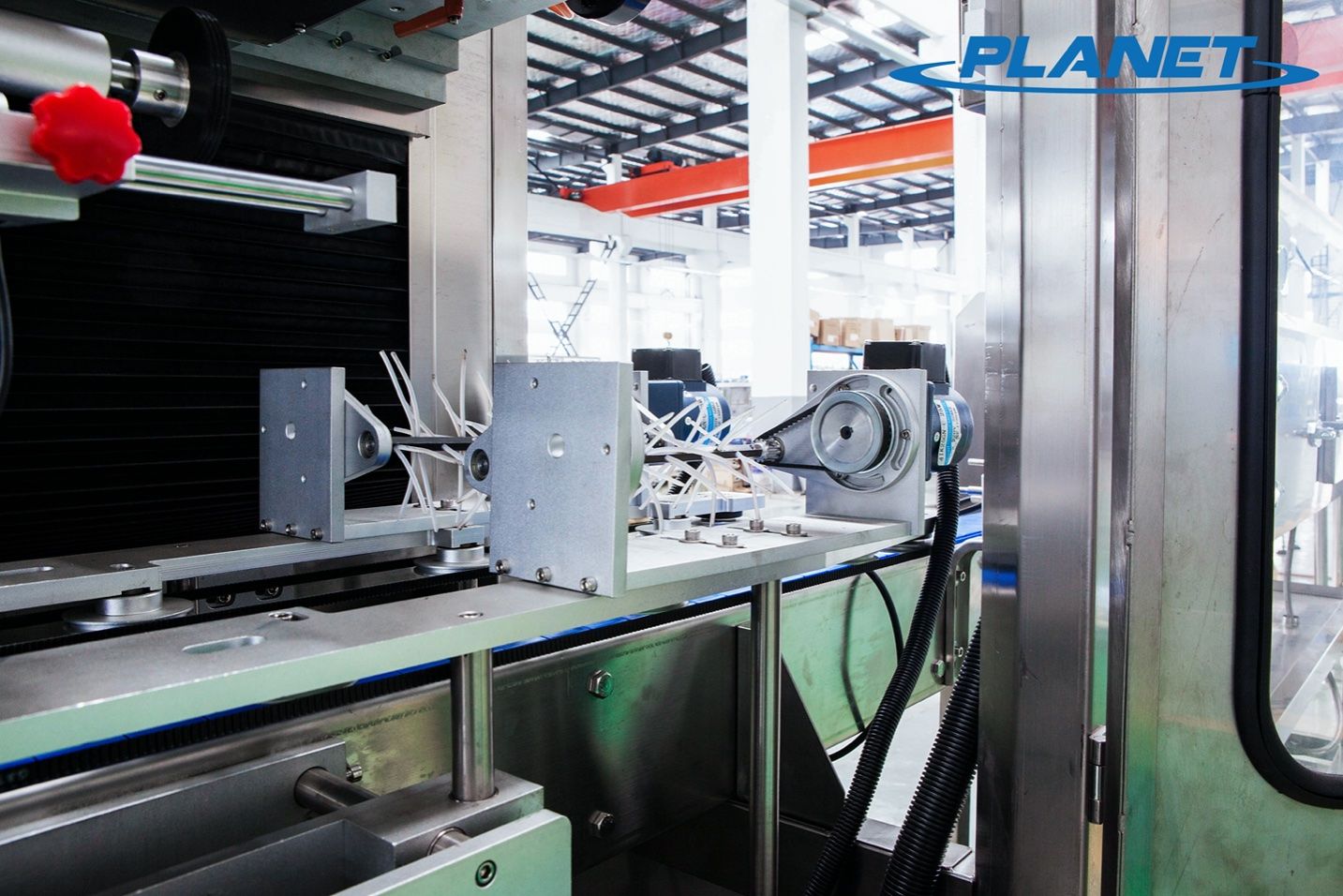

Rubber underbrushes

Rubber underbrushes

Use rubber to brush the label sleeved in the bottle until it is positioned to avoid incorrect label position.

Electric box

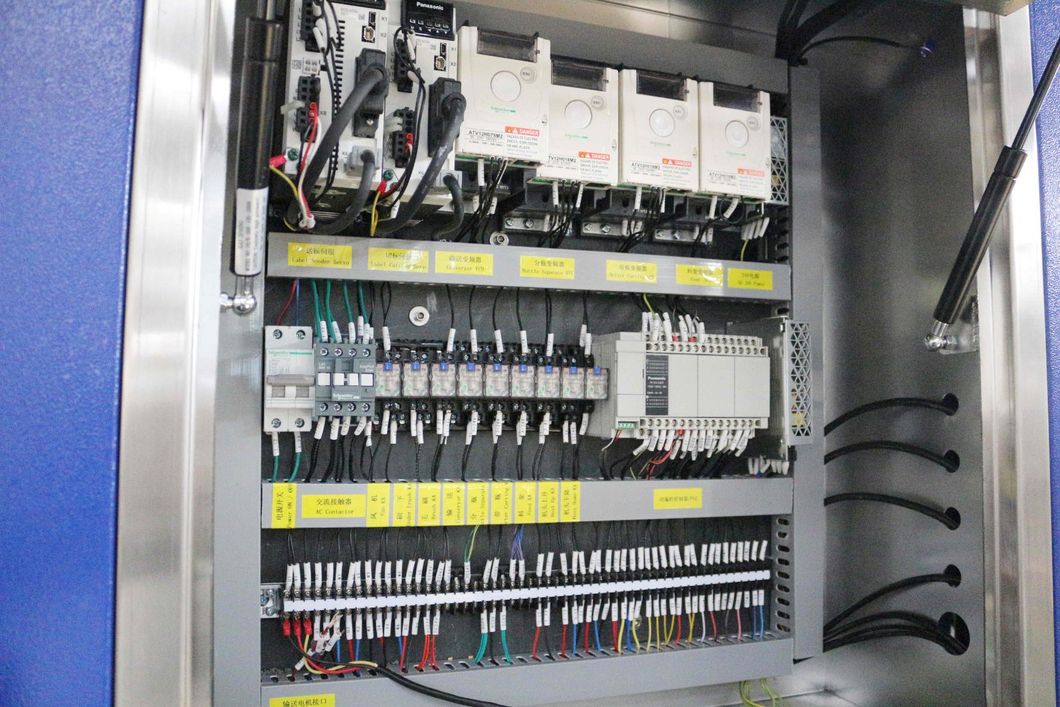

Use well-known brand electrical components, such as Siemens, Schneider, Mitsubishi, ABB etc.

Electric box

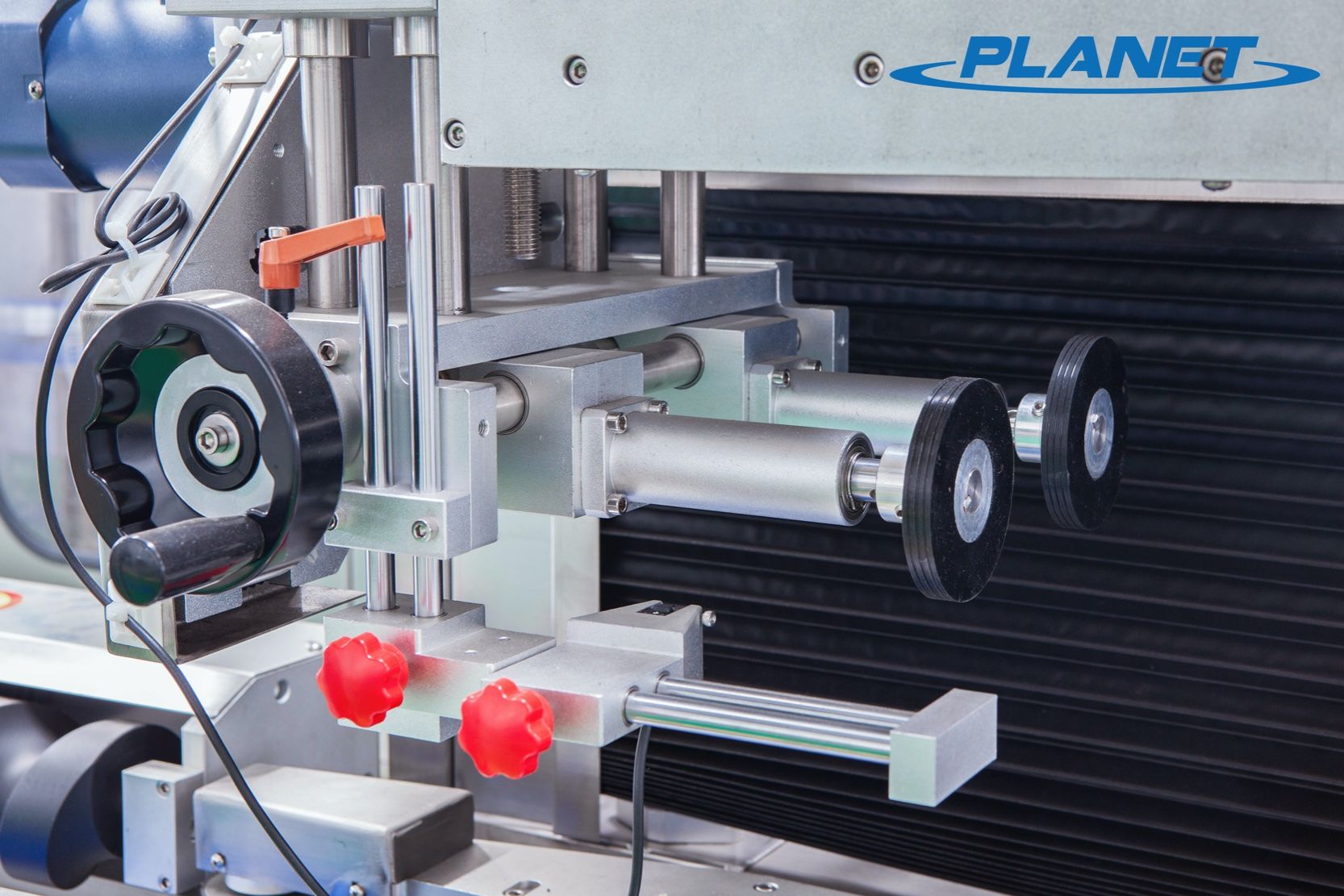

Drive rollers

Drive rollers

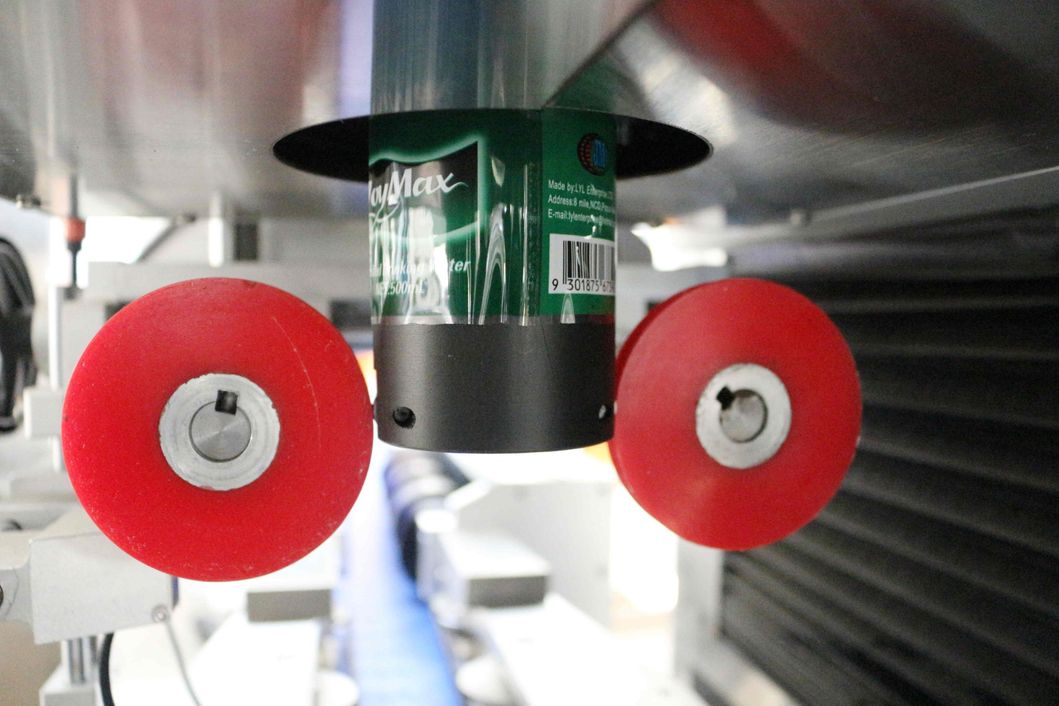

It adopts single-group or double-group mechanism synchronous servo motor control, so that the shrink film can be conveyed in a fixed size.

Cutter set

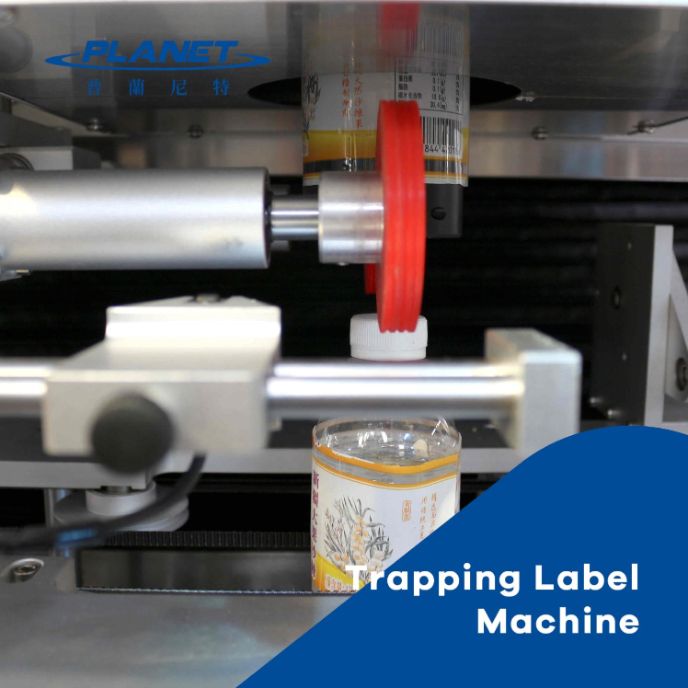

Built-in blade, planetary pairing method and deflection crankshaft-type steel structure to cut the shrink film.

Cutter set
Conveyor Belt

Conveyor Belt

Use the frequency converter to adjust the conveyor belt speed to match the speed suitable for the production capacity.

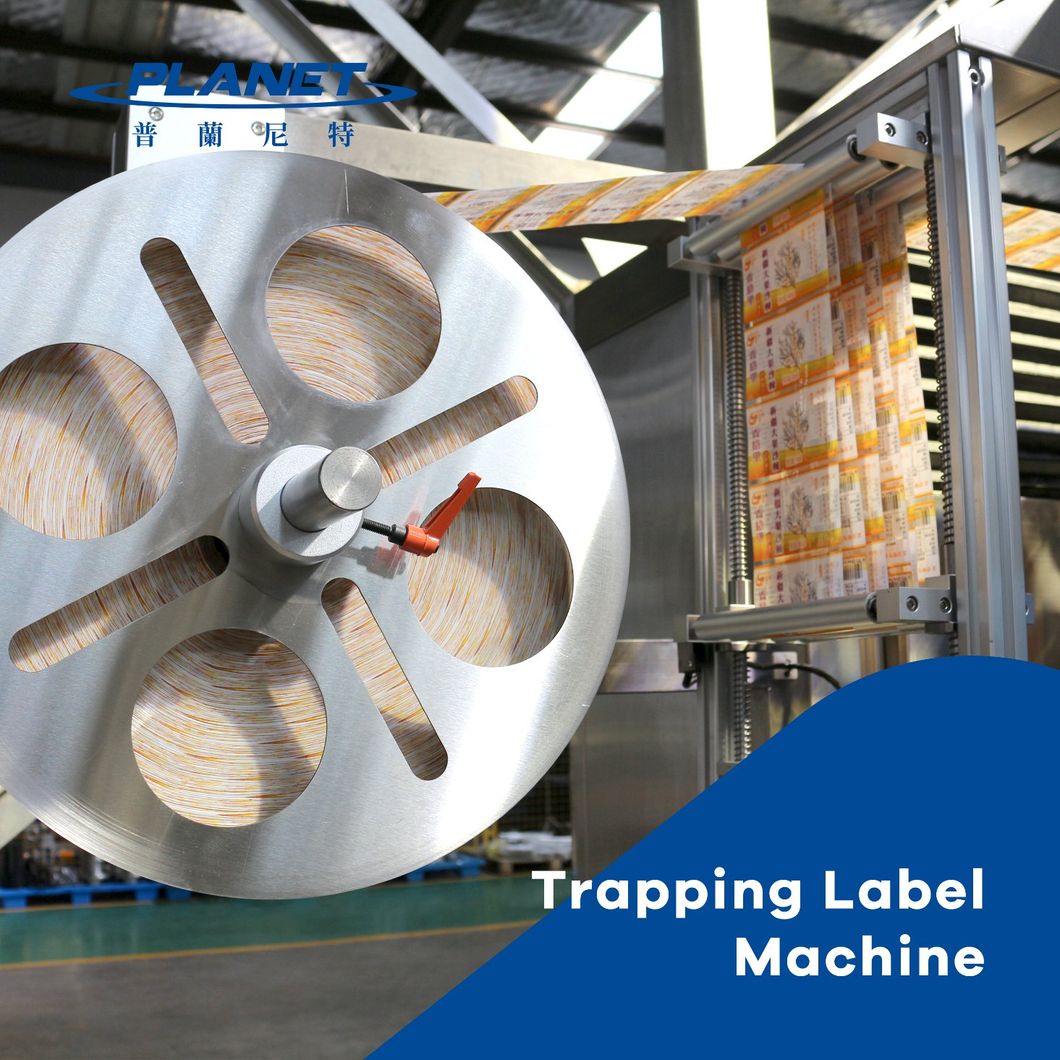

Feeding Group

It is composed of a feeder box that controls the tension of the label feeding and a feeder rack above the electric eye rack group where the label is turned and positioned to convey the label film material.

Feeding Group
Center colum

Center colum

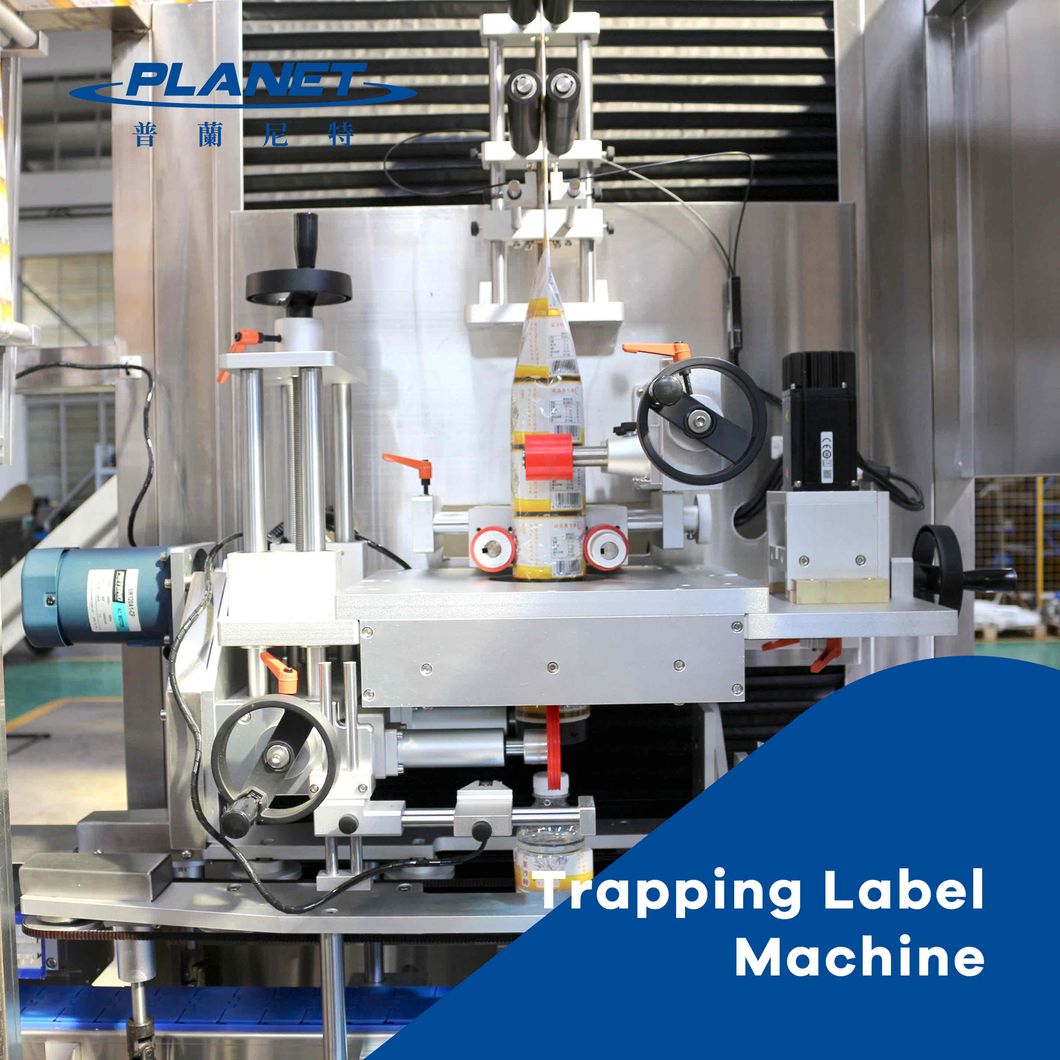

Put the label film material in and open, so that the film material can be conveyed and cut. The whole machine is made of aluminum alloy with anode treatment and 304 stainless steel material, used to support the host and fix the conveyor belt.

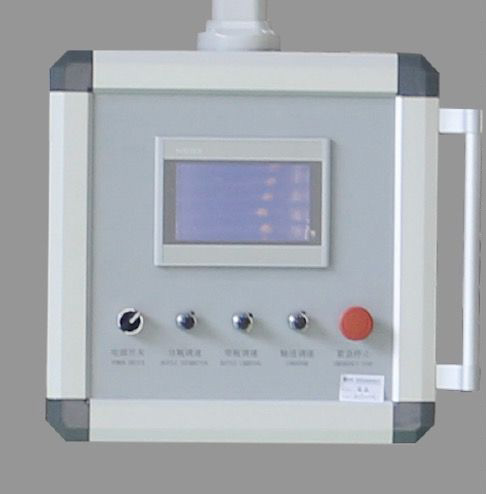

PLC Control System

It is the control center of this machine. Each operation display page is divided into manual, automatic, setting, abnormal display, etc. In addition, there are several auxiliary knobs, which are used to operate the labeling operation.

PLC Control System

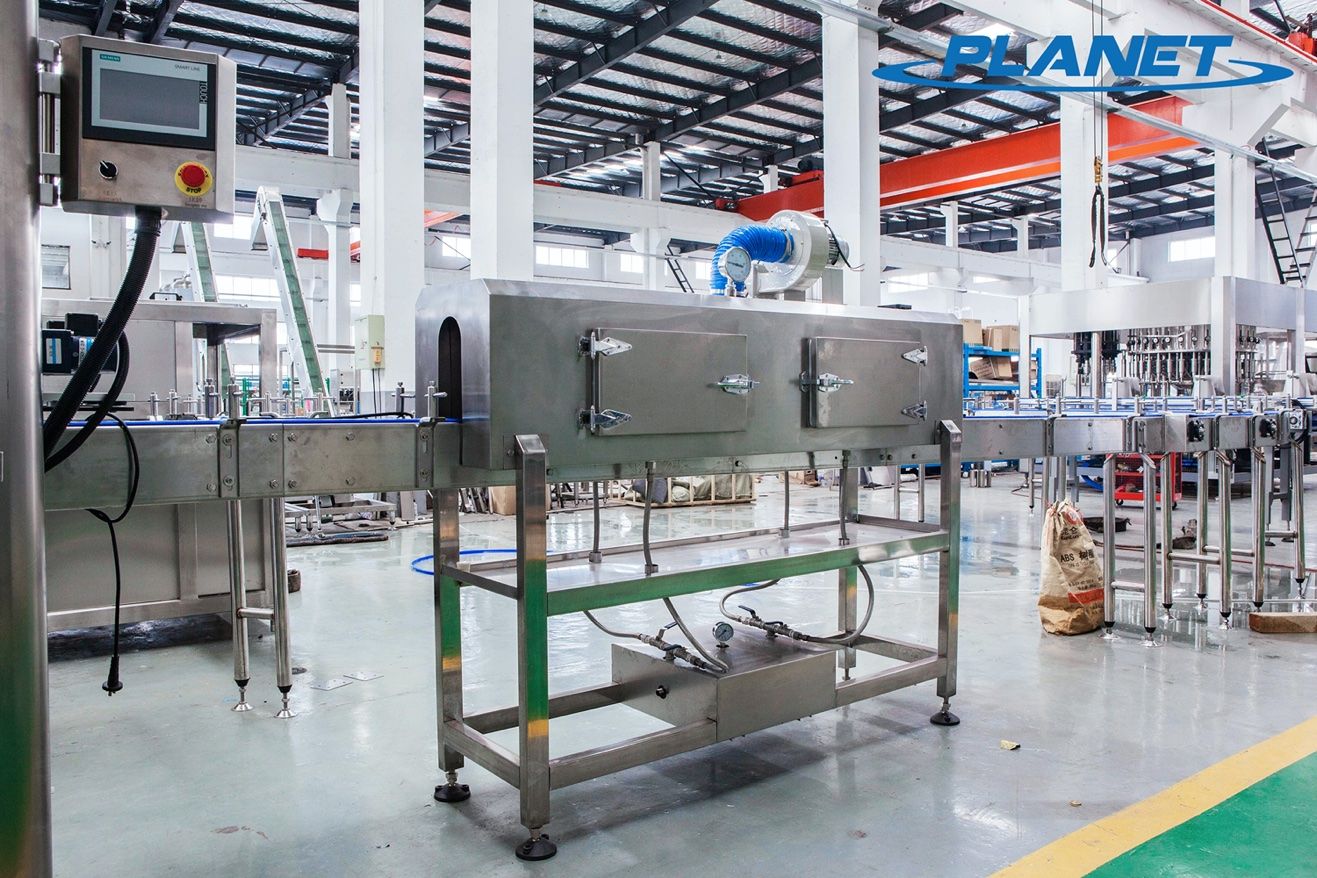

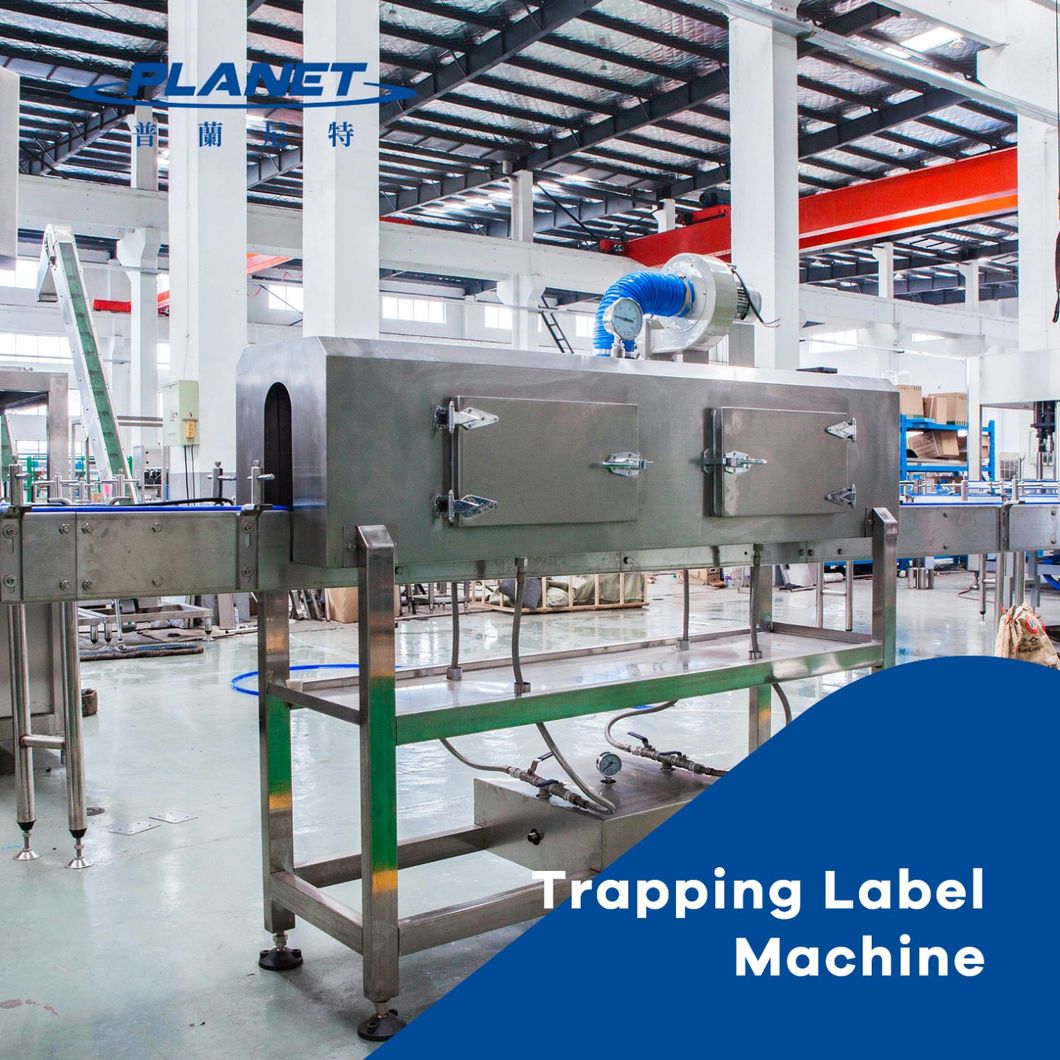

Steam heat shrink tunnel

Steam heat shrink tunnel

Tunnel provides the support for making hot sleeves which can be readily wrapped on products or containers. The tunnels are
available with different mechanisms which can be chosen based on the wrapping material and its compatibility with the type of heat
produced inside the tunnel. Consumers can choose hot steam tunnel or electric heat tunnels as per the labeling material texture
and compatibility.

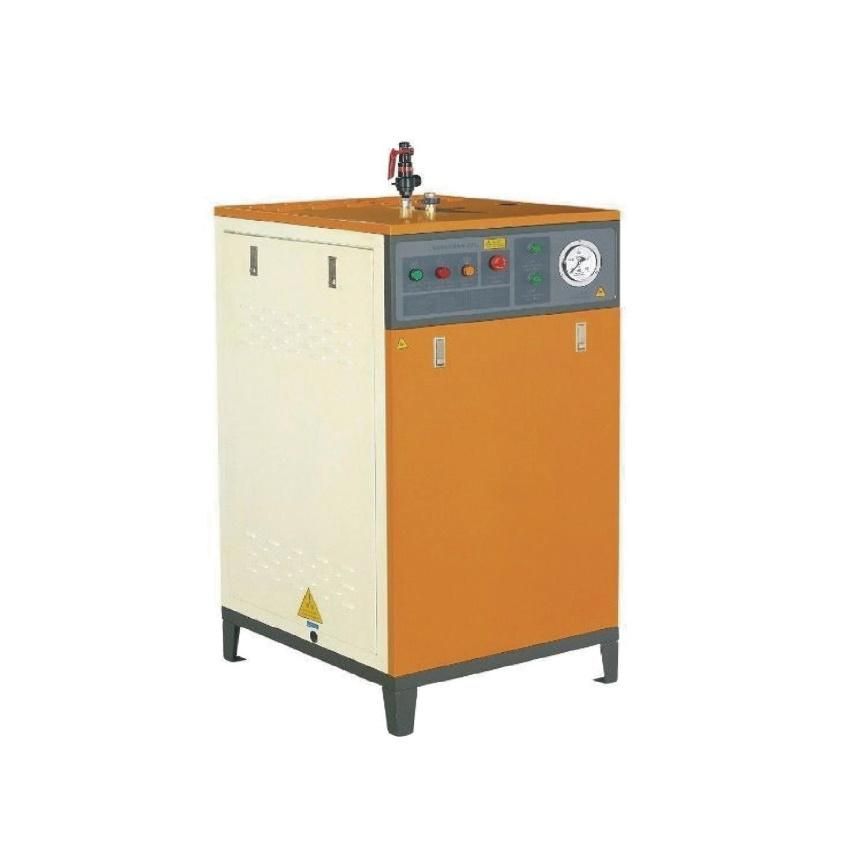

Steam Generator

The steam pressure is 3.5 bar, then open the steam hand valve to about 45 degrees, let the steam shrinking furnace heat up, and observe the temperature gauge on the shrinking furnace at 95-100 degrees.

Steam Generator
