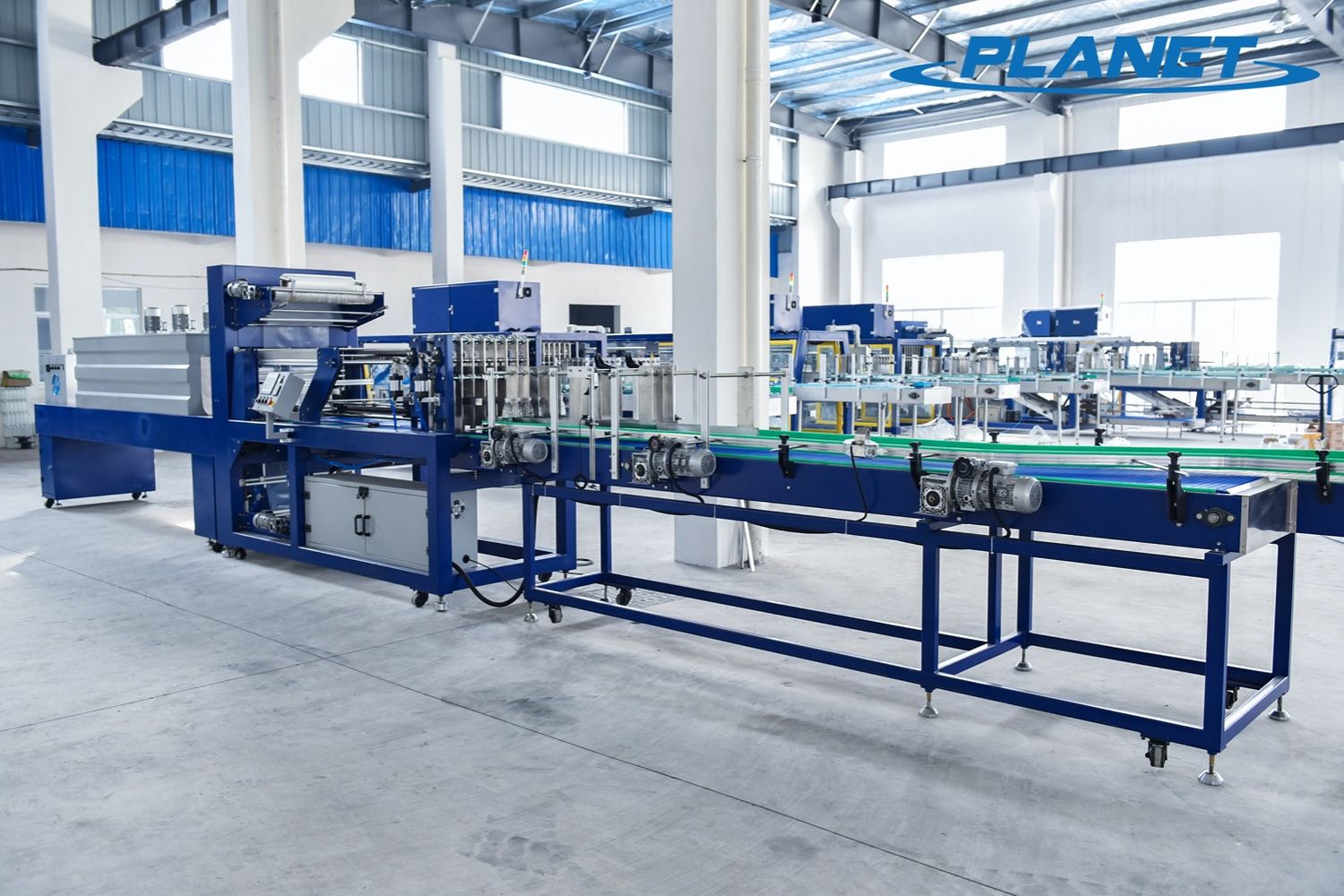

Linear type Pe film shrink wrapping Machine

Linear type Pe film shrink wrapping Machine

Shrink Wrapping is a process that involves the application of temperature sensitive films. When heat is applied to the film it shrinks tightly to whatever it is covering. Shrink wrapping equipment is available for a variety of product sizes and in both automatic and semi-automatic formats. At PLANET MACHINE Packaging, we can help you find the right shrink wrap machines that are tailored to your operation's unique needs.

Full automatic shrink packaging machine can not only be solely used, but used simultaneously with other equipment to form packaging production line. It can automatically array, aggregate and align PET beverage bottle or other similar articles, then package it with shrinking film, finally produce finished products after shrinking by heating, cooling and forming. The packaged product is firmly bound with excellent appearance, which can be opened conveniently. Therefore, it is widely used in industries such as foodstuff, medicine, chemical and other light industrial products.


Product Parameters

ModelPM-HW-20
Applicable ContainerPlastic bottle, Glass bottle, Tins and Cans
Maximum package sizeL450*W450*H350
Machine DimensionL13800mm*W1100mm*H2100mm
Transfer Belt Width550mm
Shrinkage temperature130-260℃
Sealing And Cutting Time0.5-1s
Heat sealing and cutting temperature180-260℃
Packaging Speed15-20 pcs/minute
Operating Power Supply3 phase 380V 24KW
Number of bottles per package (round or square)
4 columns 4 x 6 4 x5 applicable bottle size4x4 Φ 40 - Ф 70 mm
3 columns 3 x 3 applicable bottle size3 x4 Ф 70 - Ф 98 mm
2 columns 2 x 3 bottle diameter2 x4 Ф 98 - Ф 140 mm
1 column 1 x 2 x 1 applicable bottle diameter1 xФ140 - Ф300 mm


Application


Glass bottles

Glass bottles

Suitable : Beer, wine, brandy, vodeka

Bottle Type : Round / Square / Unique

Shrink film : PE, PP, PVC, POF etc..

Plastic bottles

Plastic bottles

Suitable: Water, juice, soft drink etc..

Bottle Type : Round / Square / Unique.

Shrink film : PE, PP, PVC, POF etc..

Tins & cans

Tins & cans

Suitable : Daily chemical products.

Bottle Type : Round / Square / Unique.

Shrink film : PE, PP, PVC, POF etc..

Features of linear type shrink wrapping machine

Features of linear type shrink wrapping machine

1. The appearance is simple and beautiful, the structure is novel and unique, and the maintenance is convenient.
2. Adopt pneumatic expansion to support the film roll, electronic induction film transport, stable film delivery, fast and
convenient film change.
3. The whole machine is designed as a linear model with linear bottle feeding and packaging. The structure is mature and stable.
It is an alternative to the vertical feeding film packaging model and is more suitable for packaging needs of a variety of bottle types.
4. Adopt pneumatic expansion to support the film roll, electronic induction film transport, stable film feeding, quick and quick film change.


5. The heat shrinking and cooling integrated machine, the shrinking machine is equipped with independent cooling channels, which can quickly cool and shape the product surface after the film package, with better fastening force, which is beneficial to palletizing and handling
6. The shrinking chamber adopts unique circulating air supply technology to realize multi-directional air volume control technology, adjustable wind speed and adjustable air outlet position, which greatly improves the shrinking effect.
7. The equipment has a compact structure, a small footprint, and is easy to maintain. 8. Modules can be added to realize the color film function, which is a highly cost-effective single-piece wrap film shrink packaging machine.

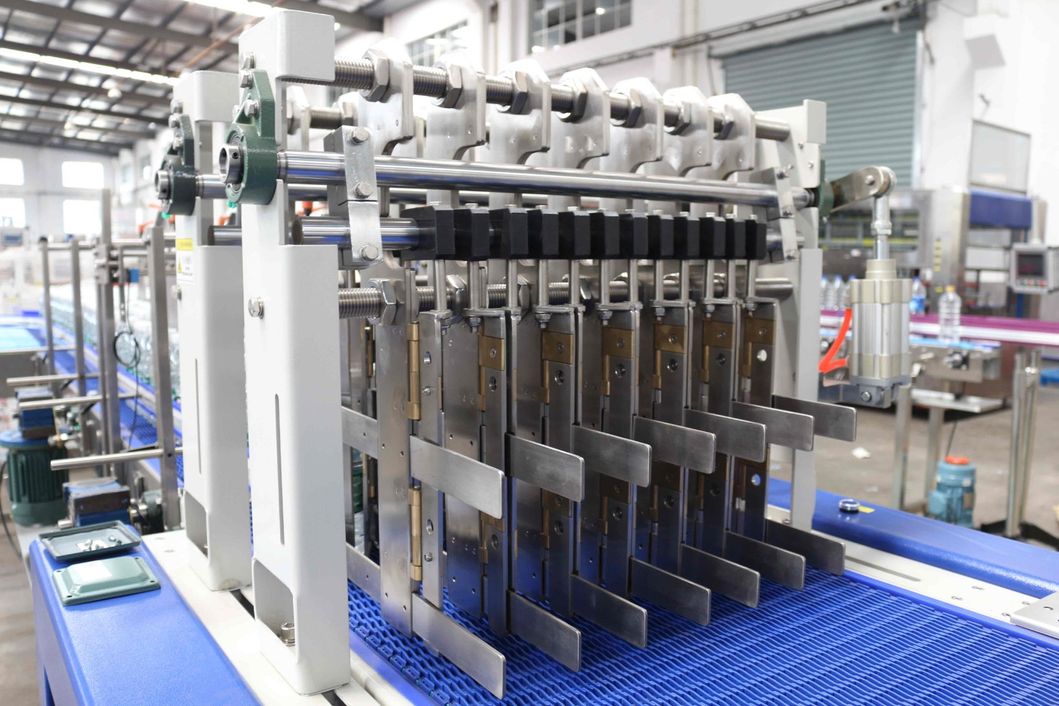

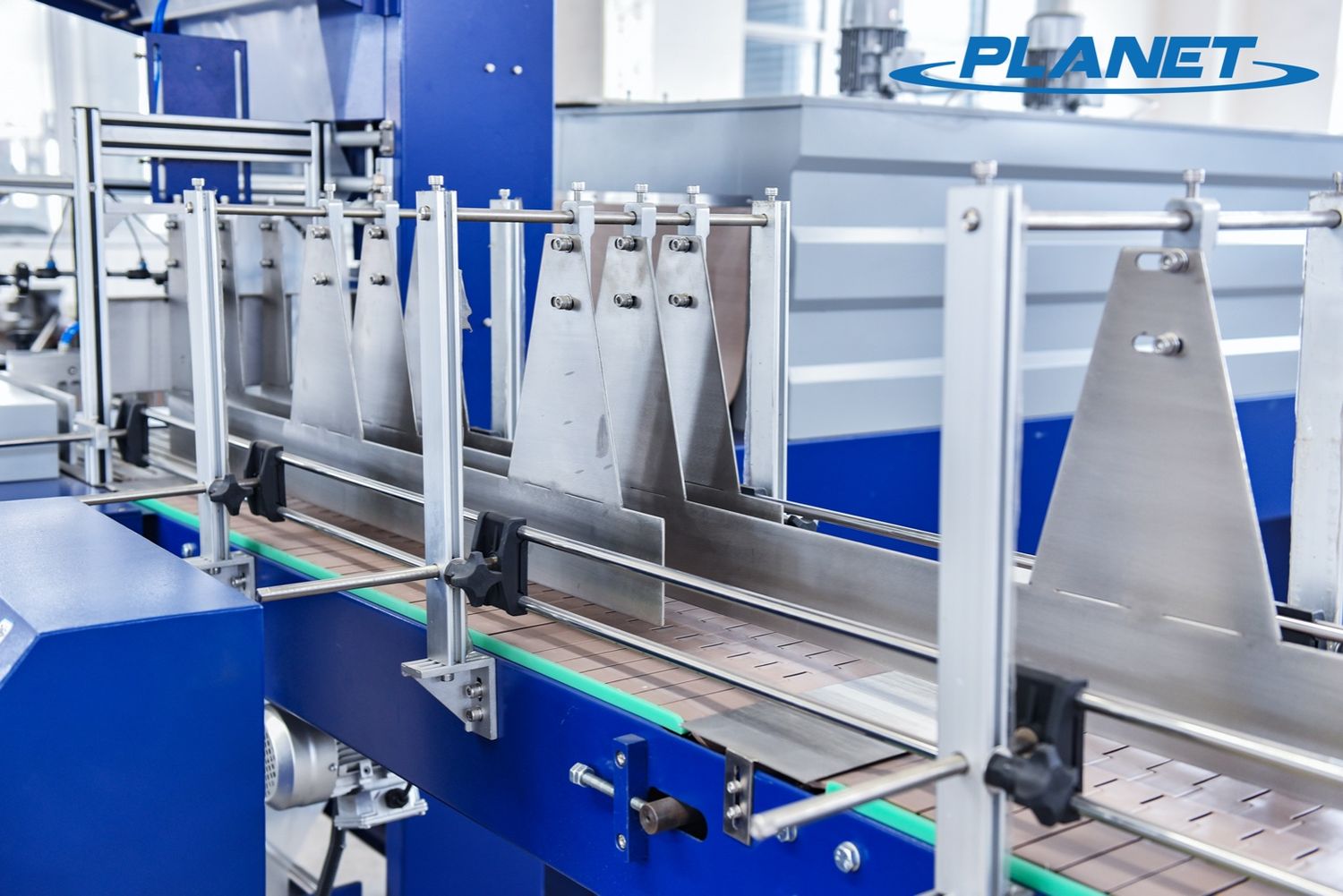

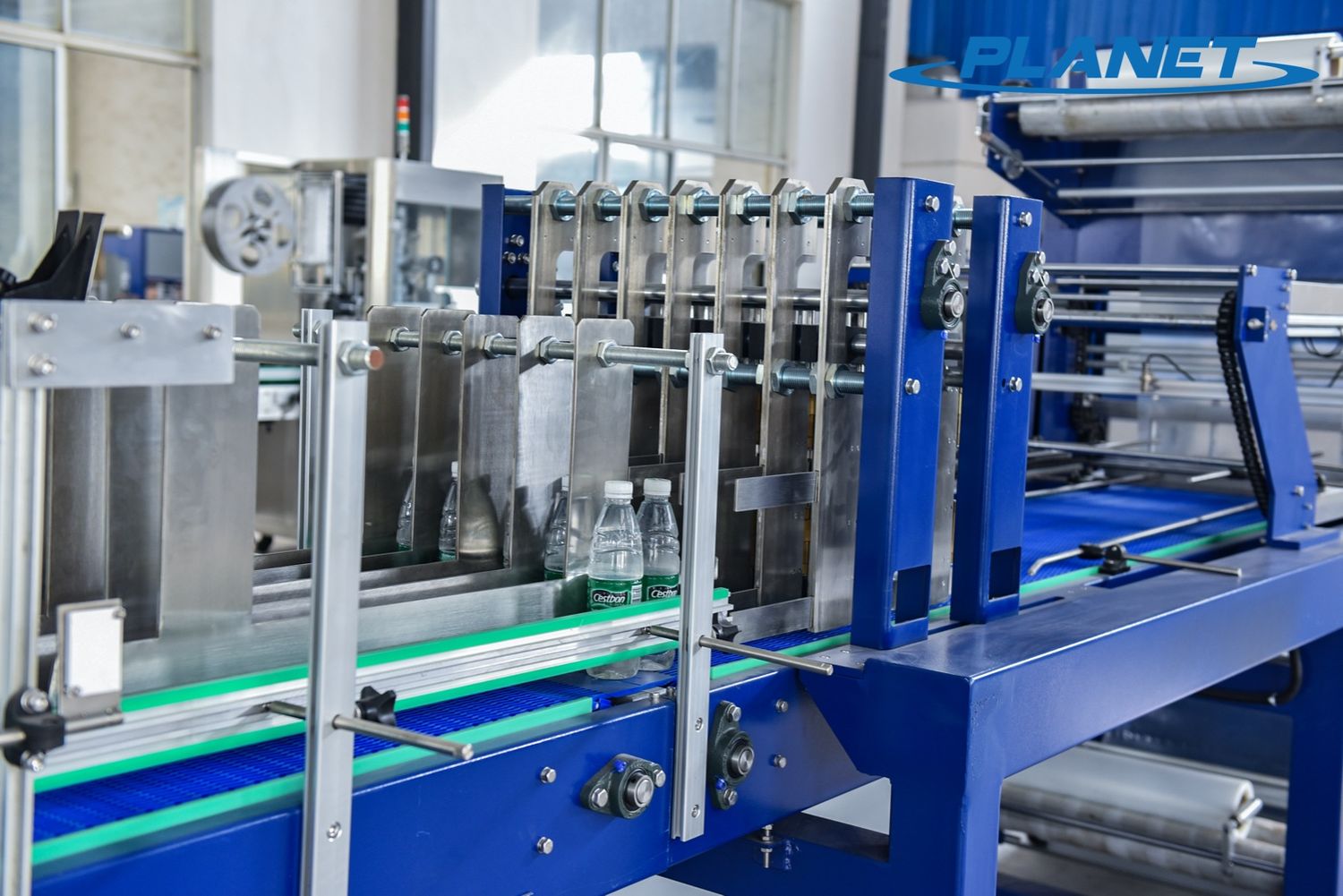

  • Bottle separator
    Bottle separator

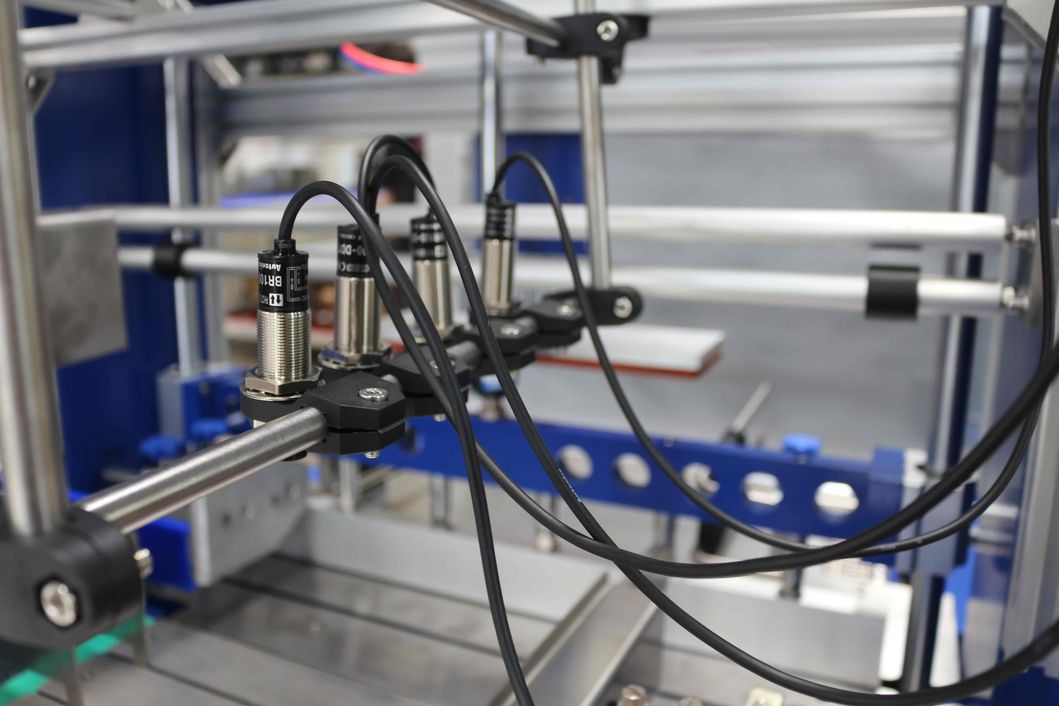

  • Photoelectric induction
    Photoelectric induction

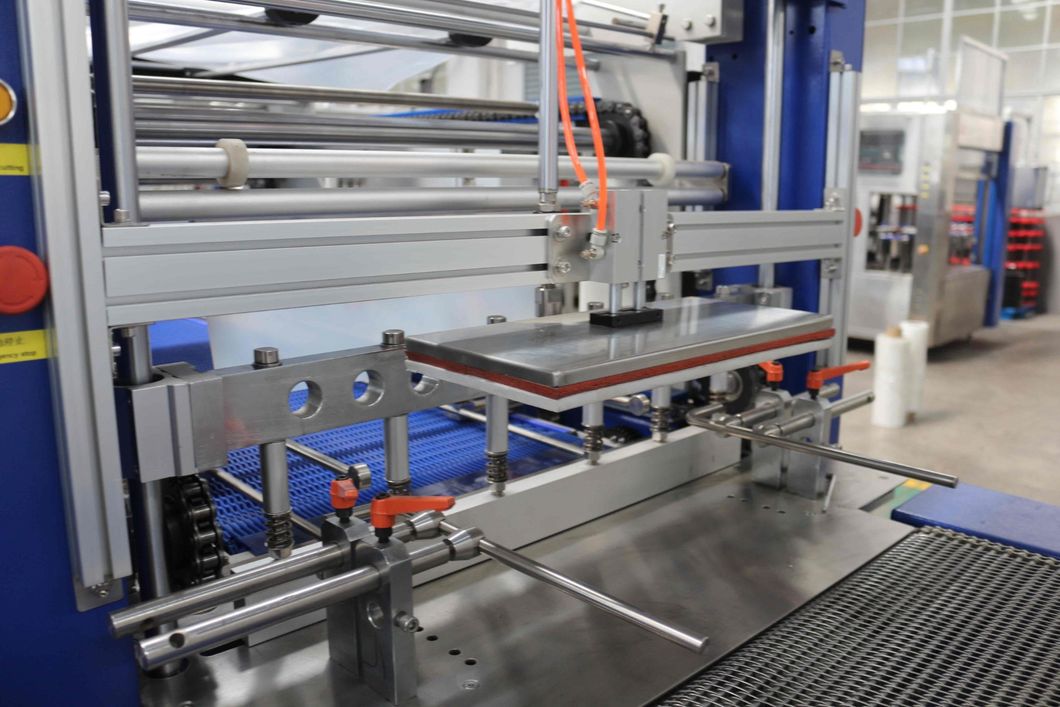

  • Film press and cutting
    Film press and cutting

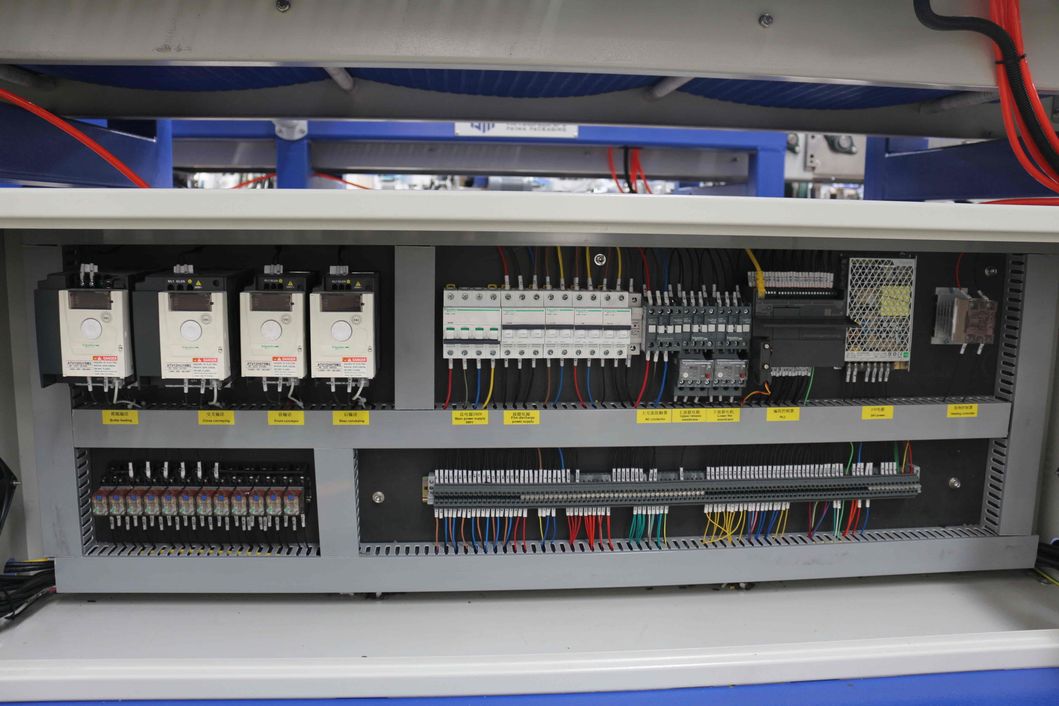

  • electrical componets
    electrical componets

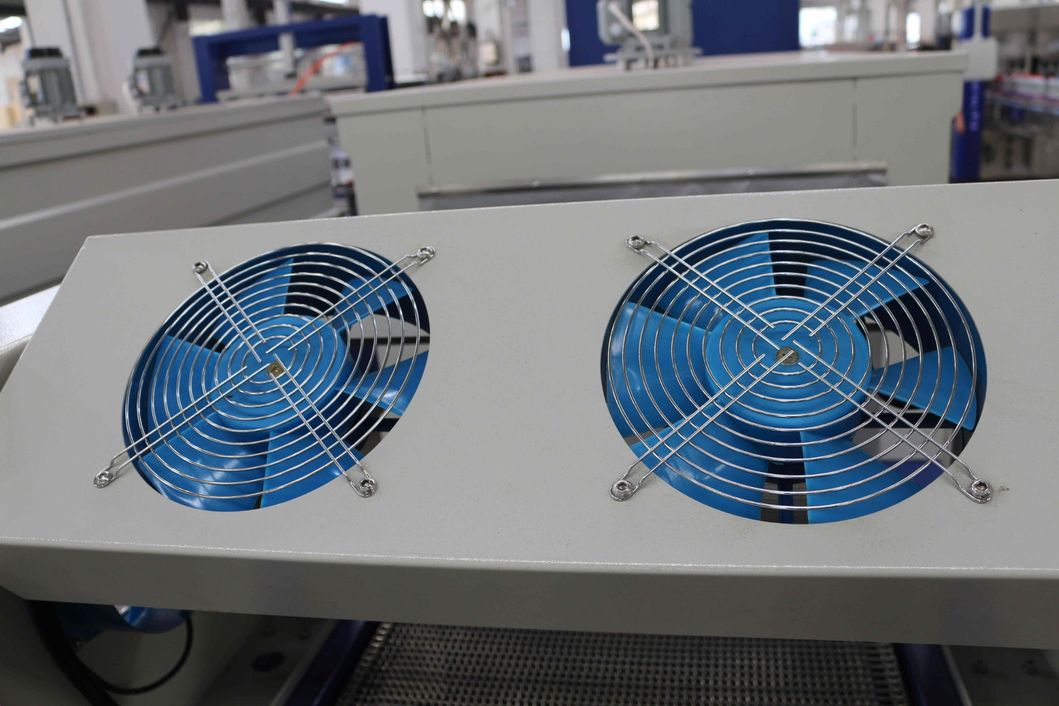

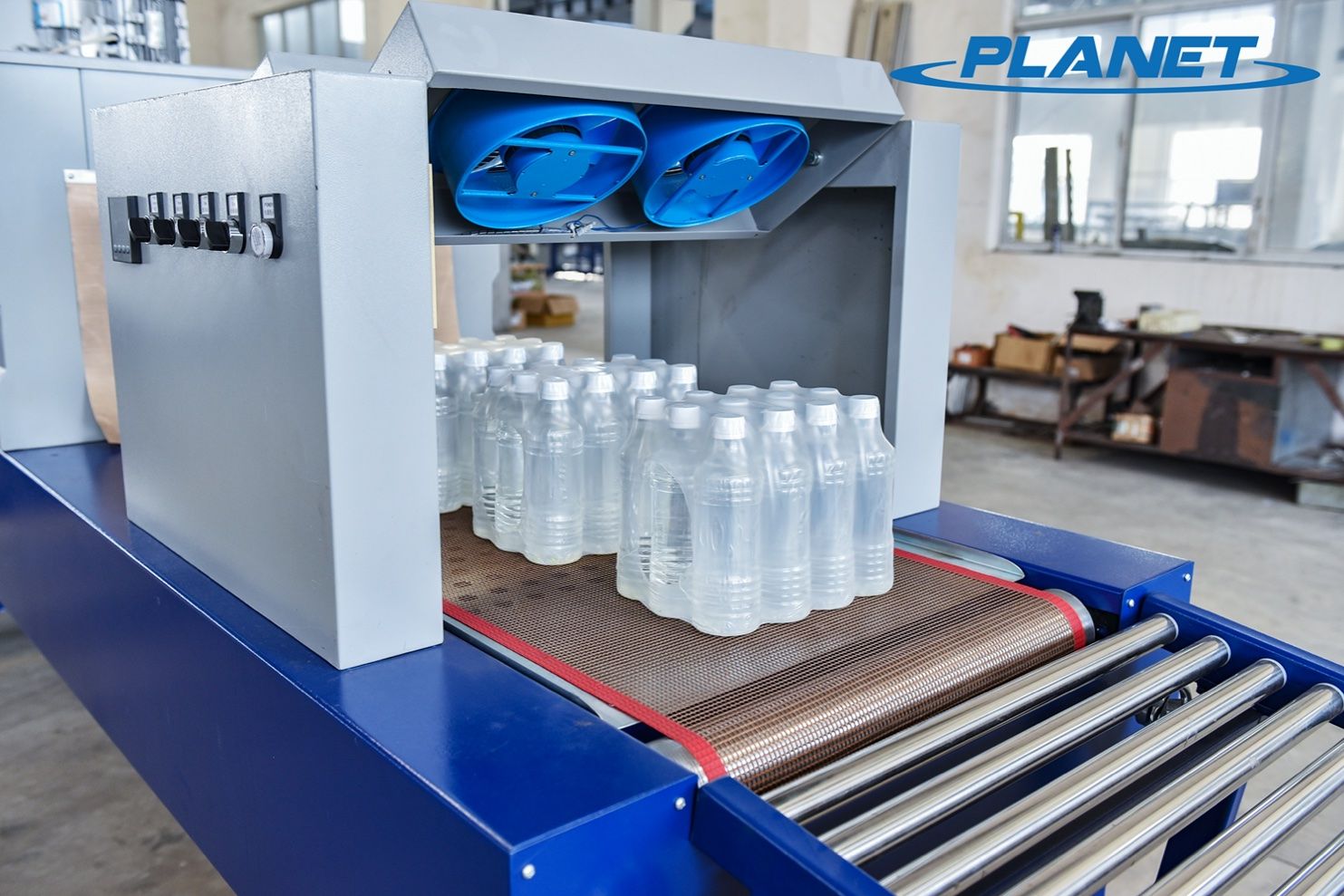

  • Fan cooling
    Fan cooling

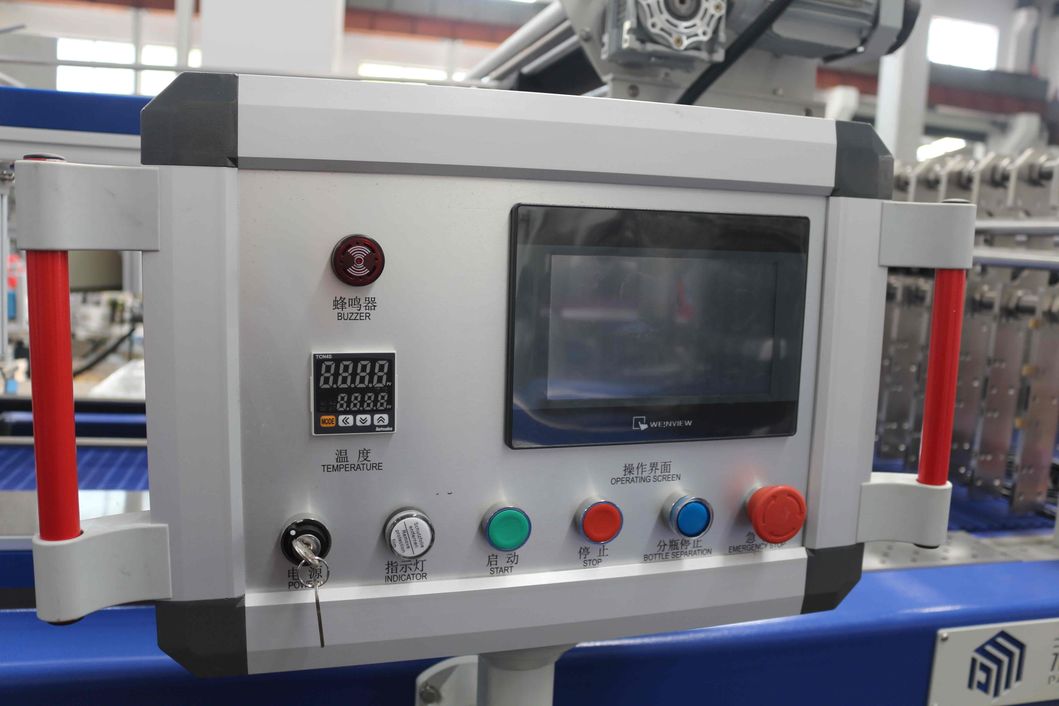

  • PLC control system
    PLC control system
