L type Pe film shrink wrapping Machine

L type Pe film shrink wrapping Machine

Shrink Wrapping is a process that involves the application of temperature sensitive films. When heat is applied to the film it shrinks tightly to whatever it is covering. Shrink wrapping equipment is available for a variety of product sizes and in both automatic and semi-automatic formats. At Paima Packaging, we can help you find the right shrink wrap machines that are tailored to your operation's unique needs.


Product Parameters

ModelPM-LW-10
Applicable ContainerPlastic bottle, Glass bottle, Tins and Cans
Maximum package size400x300x400(height)mm
Machine Dimension450x300x400(height)
Transfer Belt Width700mm
Shrinkage temperature130-260℃
Sealing And Cutting Time0-6s
Heat sealing and cutting temperature150-200℃
Packaging Speed600 BPS/h
Operating Power Supply3 phase 380V 24KW
Number of bottles per package (round or square)
4 columns 4 x 6 4 x5 applicable bottle size4 x 4 Φ 40 - Ф 70 mm
3 columns 3 x 3 applicable bottle size3 x 4 Ф 70 - Ф 98 mm
2 columns 2 x 3 bottle diameter2 x 4 Ф 98 - Ф 140 mm
1 column 1 x 2 x 1 applicable bottle diameter1 x Ф140 - Ф300 mm


Application


Glass bottles


Glass bottles

Suitable : Beer, wine, brandy, vodeka

Bottle Type : Round / Square / Unique

Shrink film : PE, PP, PVC, POF etc..


Plastic bottles

Plastic bottles

Suitable: Water, juice, soft drink etc..

Bottle Type : Round / Square / Unique.

Shrink film : PE, PP, PVC, POF etc..


Tins & cans

Tins & cans

Suitable : Daily chemical products.

Bottle Type : Round / Square / Unique.

Shrink film : PE, PP, PVC, POF etc..

Features of L type shrink wrapping machine

Features of L type shrink wrapping machine

1. It is convenient to adjust the packaging combination and bottle type when changing, which can realize the multi-purpose function of one machine;

2. The shrinkage and sealing temperature of the film wrapping machine is automatically controlled, and it can be changed according to needs; 3. Imported original guide rod cylinder for high-speed film charter, reliable and stable action;
4. Constant temperature sealing and cutting knife, the sealing edge is firm, and the cutting is fast;

5. Programmable controller (PLC) control, suitable for lean and flexible production lines;

6. The three-layer heat insulation treatment of the high-speed film wrapping machine has good heat preservation performance, fast heating, and energy saving;
7. Packaging without backing, suitable for packaging with different bottle diameters and different combinations;

8. The temperature of the heat shrinking furnace is set by a temperature controller, and the temperature of the area is
individually controlled, and the control is accurate;

9. The product has beautiful shrinkage effect, firm package, unique structure, energy saving and high efficiency.

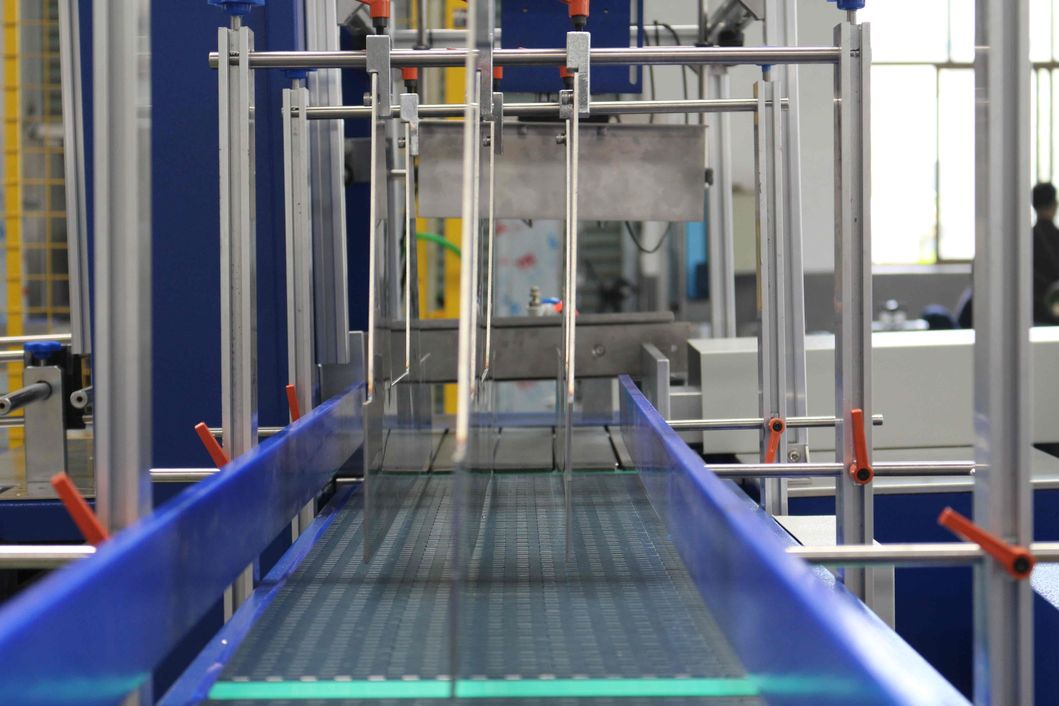

  • Bottle separator
    Bottle separator

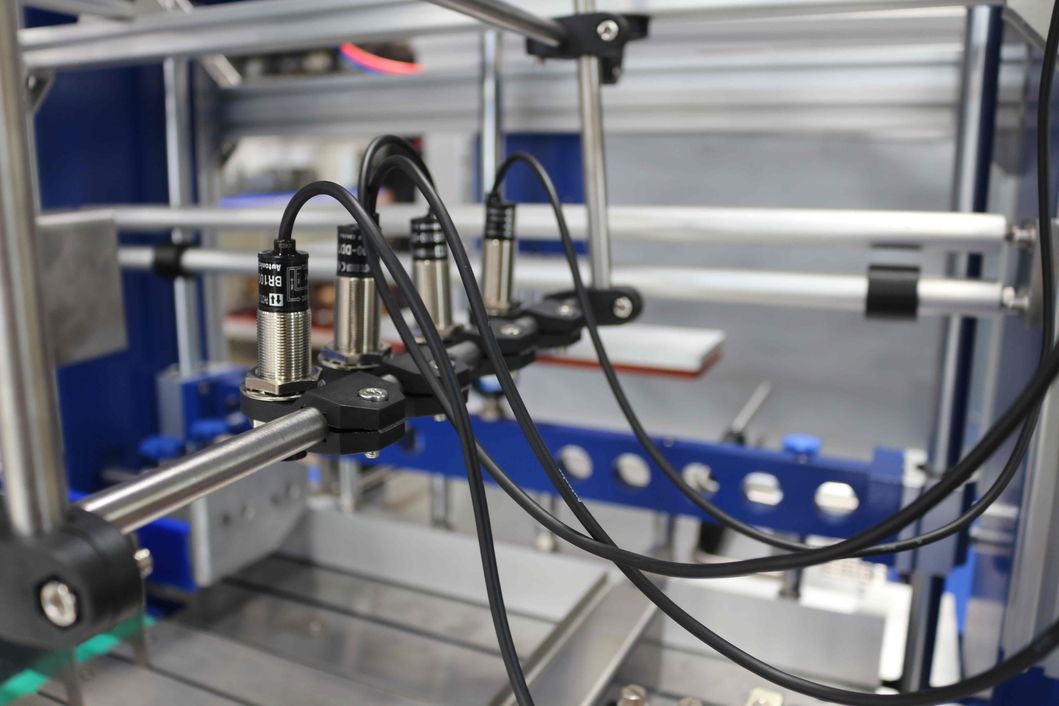

  • Photoelectric induction
    Photoelectric induction

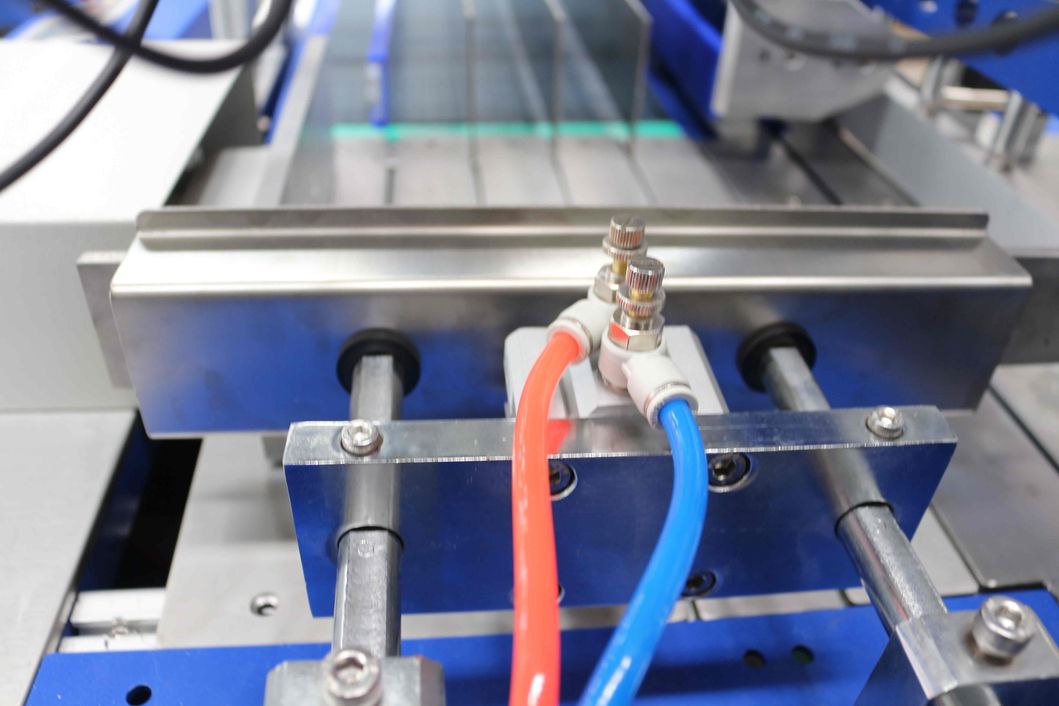

  • Film cutting
    Film cutting

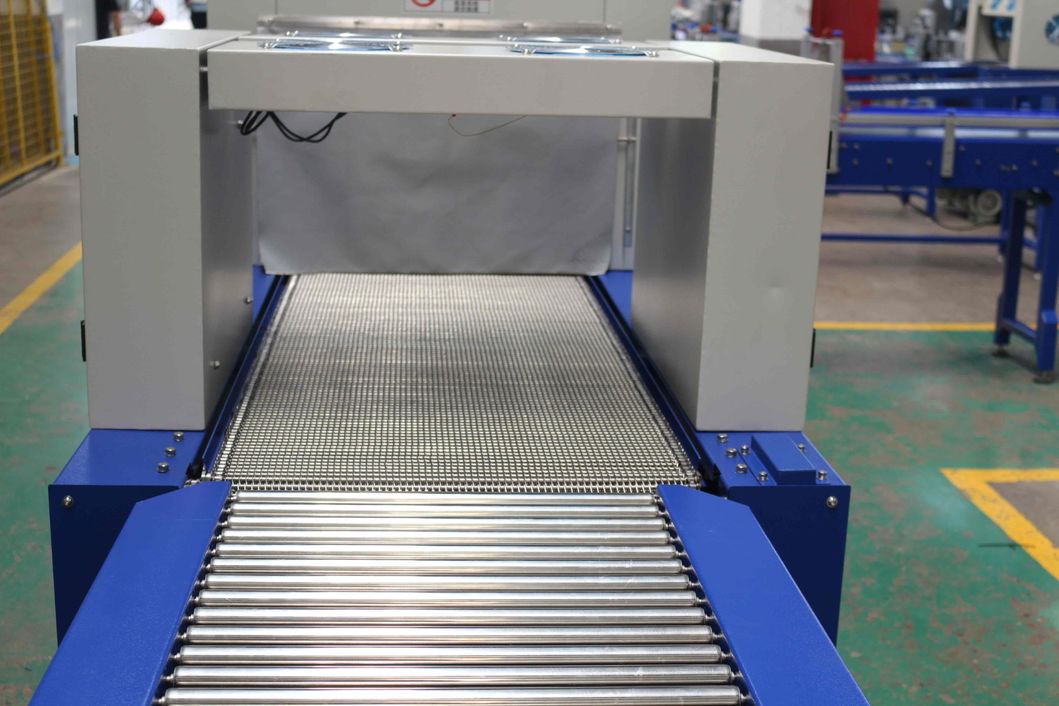

  • Stainless steel belt
    Stainless steel belt

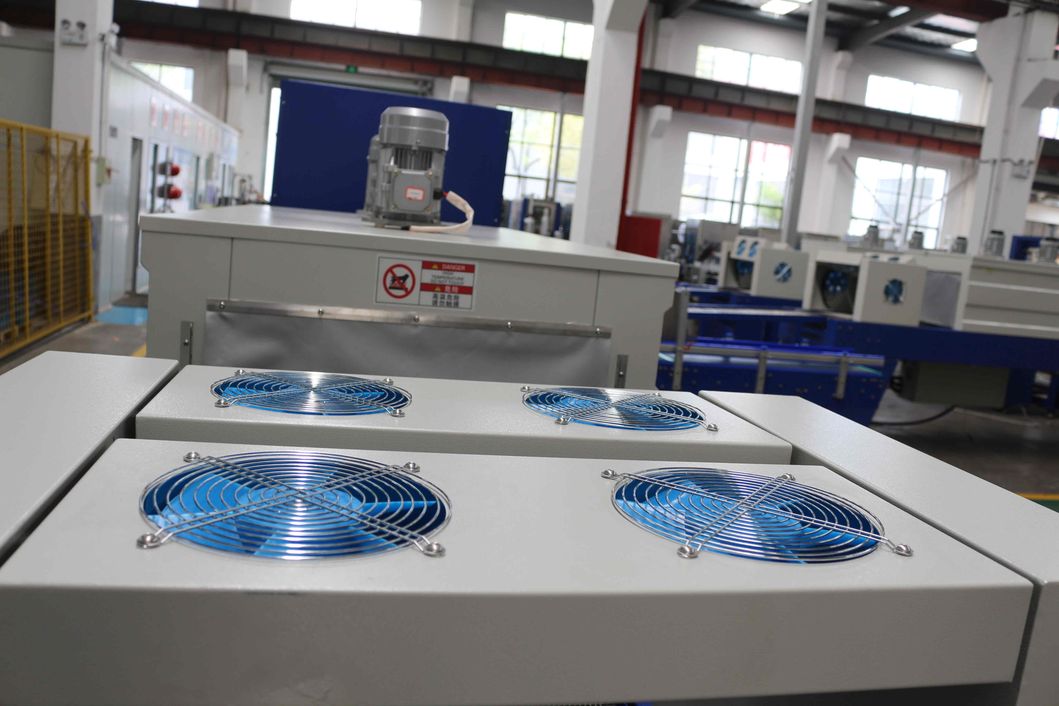

  • Fan cooling
    Fan cooling

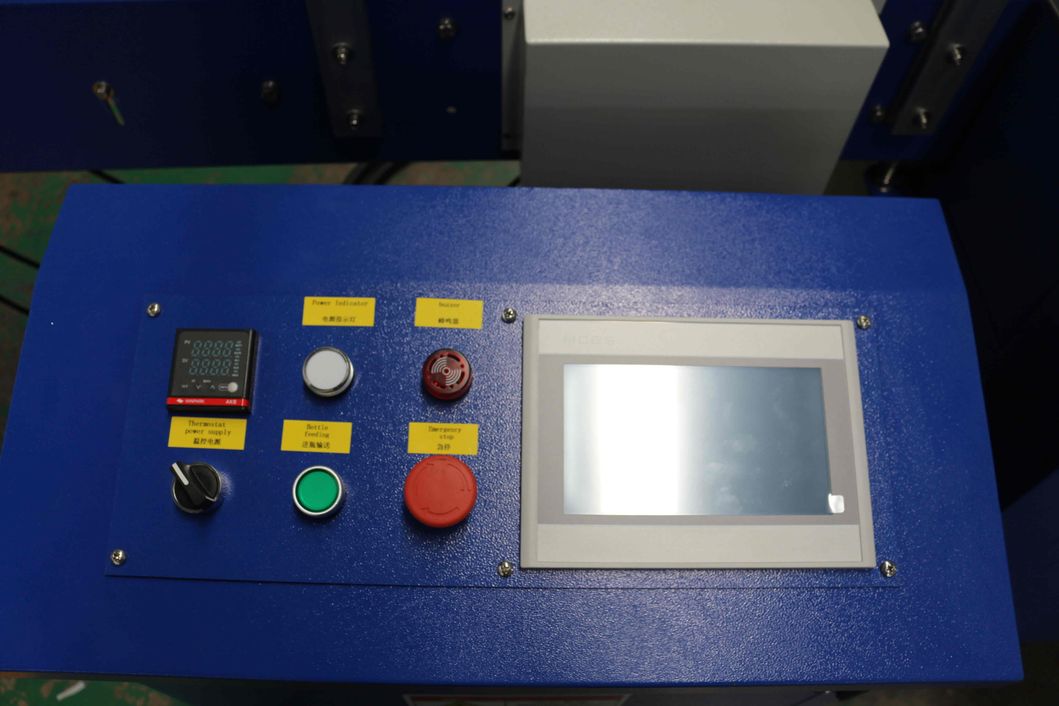

  • PLC control system
    PLC control system
