The water filling production line produced by Planet Machinery has good stability, easy operation and supports customization.
The water filling equipment is Suitable for 350-1500ml PET bottles mineral water, drinking water, pure water etc. Different models,water filler can satisfy various requirement of output from 4000BPH to 42000BPH.,The water filling machine combines washing, filling and capping three function in a body, the whole process is automatic. Filling
way using the gravity or micro pressure filling, make the speed is faster and more stable, so with the same model Planet Machinery’s water filling production line output is higher and more efficient.
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, thisenable the change the bottle-shaped become easier.
2. Bottles fransmissian adopt clip bottleneck fechnology, bottle-shaped transform not need to adjust the equipment level onlychange related the curved plate, wheel and nylon parts is enough.
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filing accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PlC autamatic control technclogy, the key electrical components from famous company such as japan's.

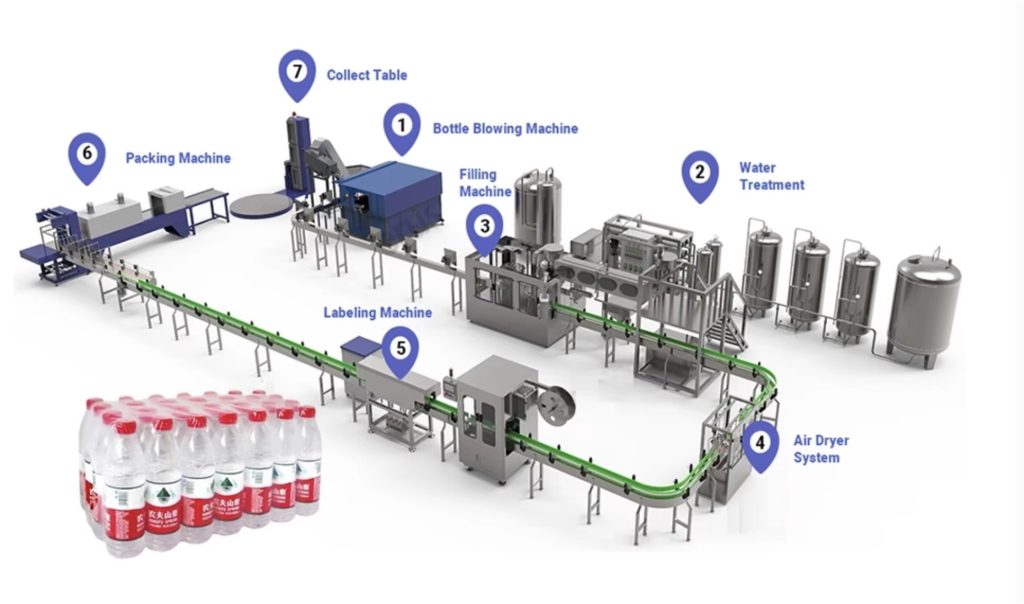

- Automatic bottle blowing machine
- Air conveyor system
- Washing. filling. capping 3inl machine
- Conveyor system
- Automatic
- Sleeve labeling machine
- Automatic film shrink packing machine/Carton packing machine

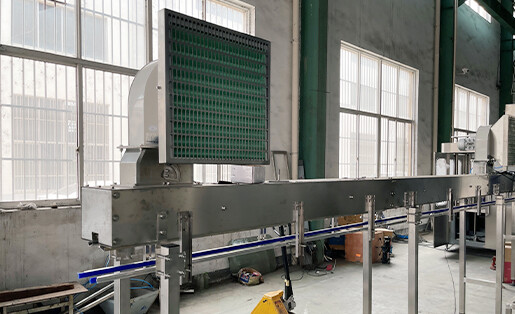

Air Conveyor
– Air conveyor is fixed on the floor, with fan installed on the top.
– Air filter is positioned at every entrance of air fan, to prevent dustblown into bottles.
– Bottles are held on the neck in the conveyor and transported intofilling machine by blowing power.
– All are made of stainless steel SUS 304 /316.
– Rack made by high quality carbon steel welded.

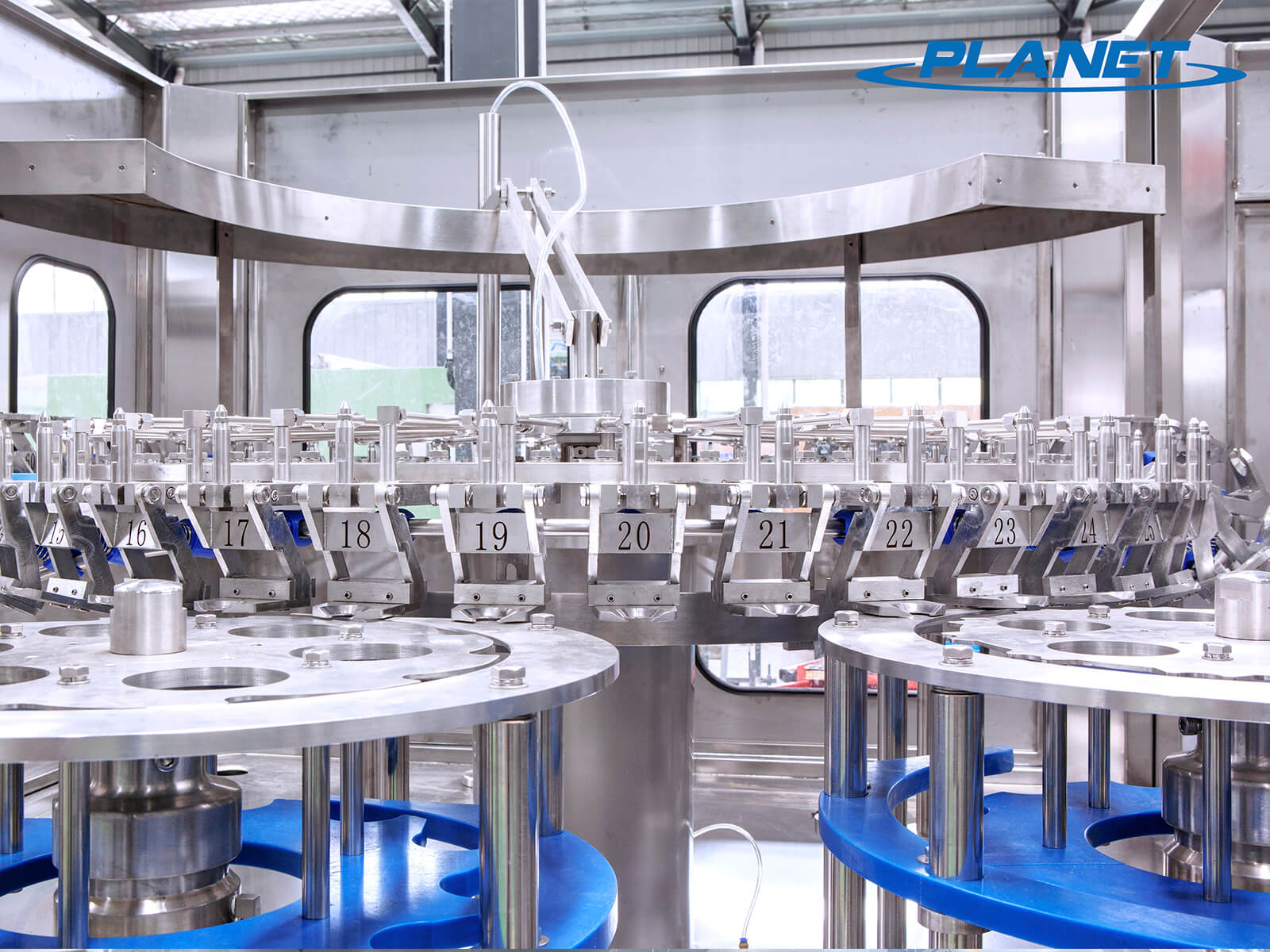

Bottle Washing
– Into bottle way is air conveyor direct connection with bottle dial.
– All 304/3l6 stainless steel rinse heads, water spray styleinject design, more save water consumption and more clean.
– 304/316 Stainless steel Gripper with plastic pad, ensure minimalbottle crash during washing.
– 304/316 stainless steel washing pump make the machine moredurable.Bottle Washing

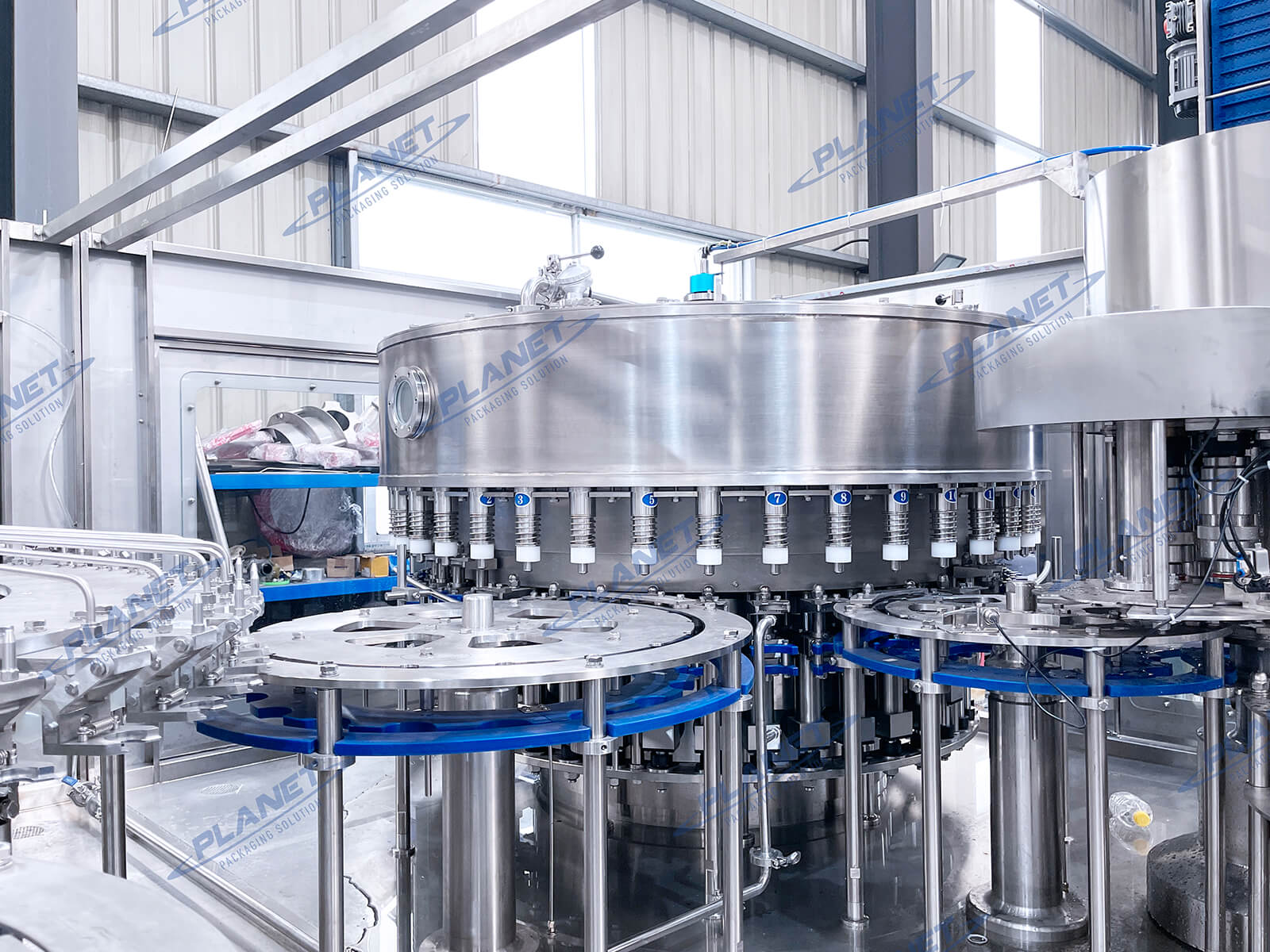

Conventional Type Filling
– Filling volume adjustable in fine rank, same liquid level after filling.
– All 304/3l6 stainless steel contact parts & liquid tank, fine polish,no death corner, easy to clean.
– 304/316 stainless steel filling pump.
– Efficient spray nozzle rinse thoroughly and save water for flushing.

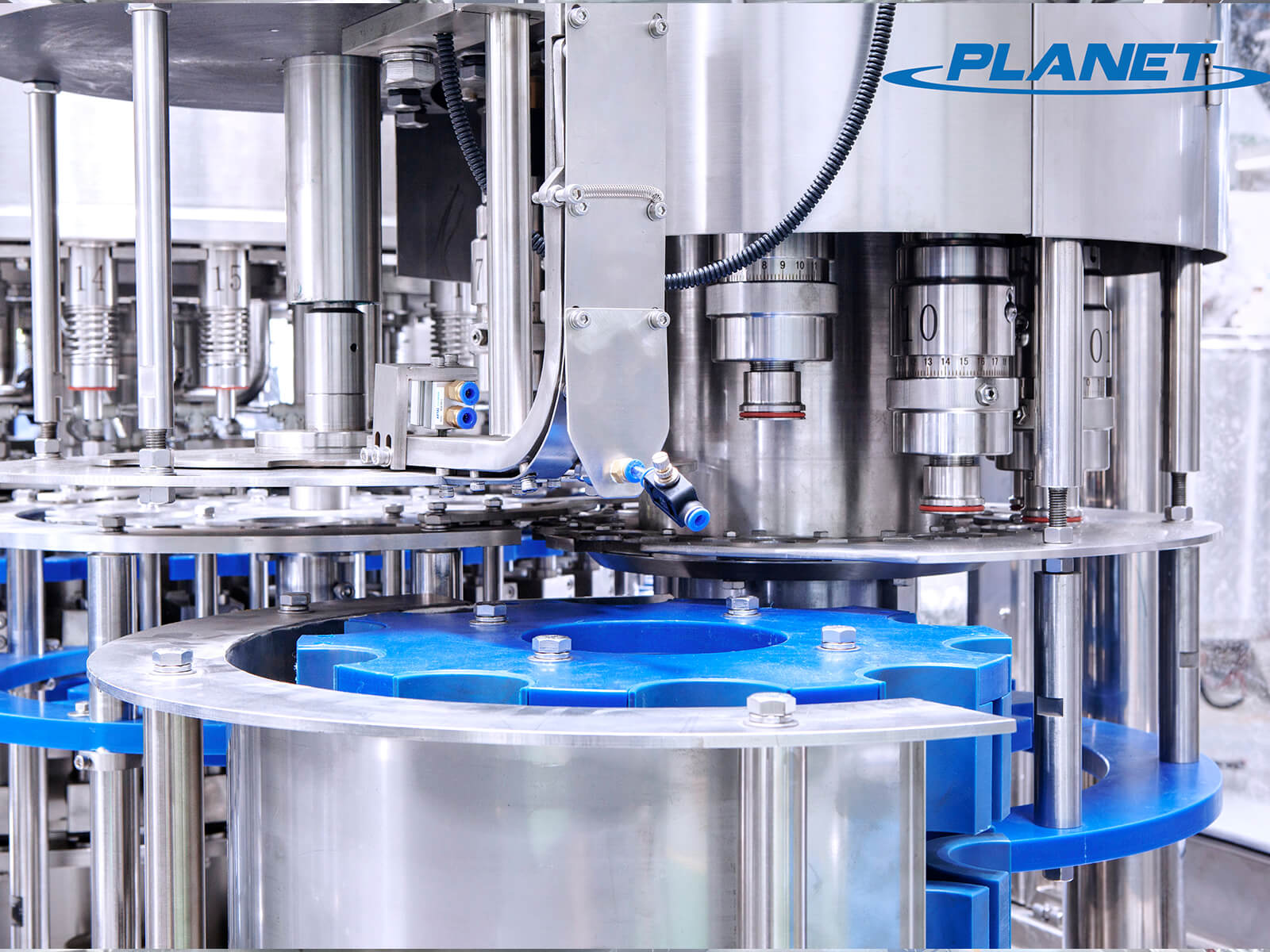

Bottle Capping.Bottle capping
– Place and capping system, electromagnetic capping heads, withburden discharge function, make sure minimum bottle crash duringcapping.
– All 304/3l6 stainless steel construction.
– No bottle no capping.
– Automatic stop when lack of bottle.
– Capping effect is stable and reliable, Defective rate ≤0.2%
