Glass Bottle Filling Machine

The Glass Bottle Filling Production Line produced by Planet Machinery has good stability, easy operation and supports customization. Provide pre-sales whole plant planning drawings and after-sales installation and commissioning.
The glass bottle filling production line adopts PLC control interface, fully automated operation, stable operation, easy to clean and maintain, the best choice for filling machinery factories.

GET A QUOTE

Description

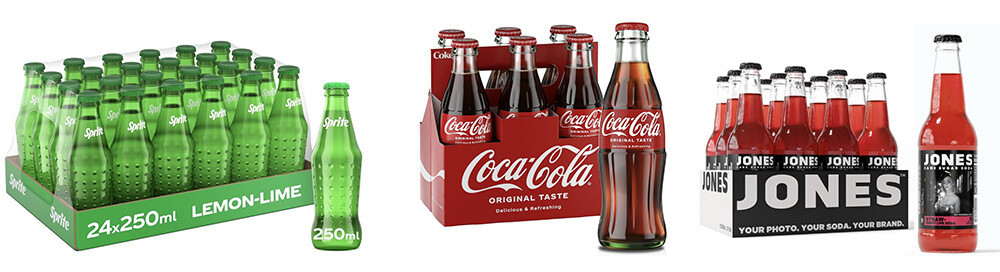

Applicable Bottle Type

Machine layout

Video

Beer Glass Filling Production line from A-Z

Turn-key Solution

No matter what size of the line you want, you can always find porper machinery for your glass bottling line. Which means we provide various glass bottling production machine such as pre-mix equipment, bottle depalletizer, bottle rinsing-filling-capping machine, sterilization machine, labeling machine, spray cooling machine, packaging machine, conveying system, palletizing system etc.

Product Parameters

Project Name: Full Automatic Complete beer 3000-36000bph Production Line				beer
Material	Shape	Filling volume	Filling level(mm)	Neck type
Glass bottle	Round bottle	200-1500ml	Distance from bottle neck According request	As request
Adjustable specifications of the can type	【Middle Mould Base】 can diameter s66mm can Heights165mm
	Customers need to buy additional change-over parts for the different cans.If using square bottles, then bottle separating system will be added.
Container Label & Control Mode		Packaging system		Palletizing system
Cold glue label/adhesive label Full Label/ Half Label Manual /Automaticc		Packing system	Min, Spec.	Manual Low position gantry palletizer Robot Palletizer High position gantry palletizer Single Arm PalletizerManual Palletizer
		Manual Film shrinker Wrap Around packer carton pack Robert Packing Machine	12 23 34 46 3*5
User Ambient Conditions		Temperature:0~4°C;Humidity: No dew
User Electrical Supply Specification		Voltage:380V+5%,3phase;Frequency:50HZ+1%

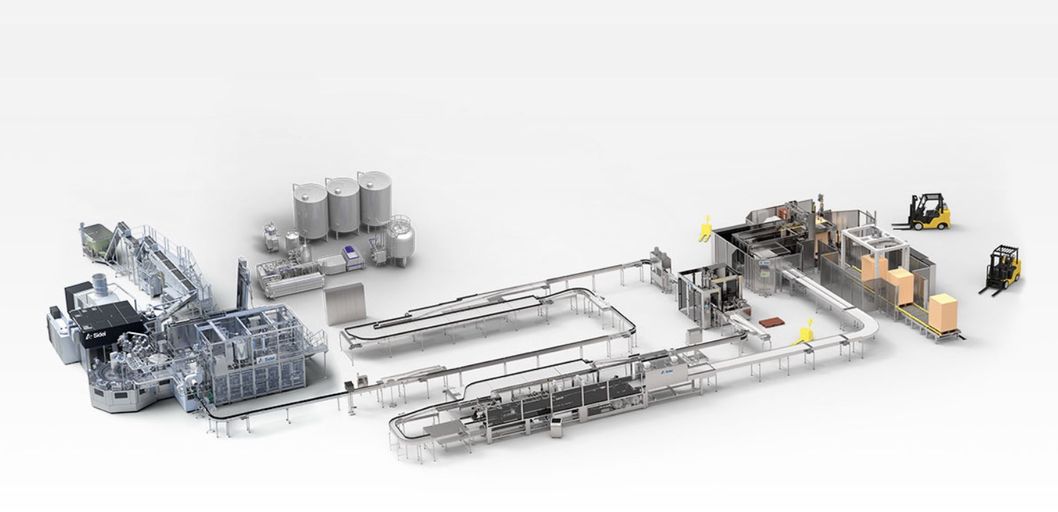

Machine Layout

Glass bottle depalletizer -->washing,filling and sealing 3 in 1-->pasteurization tunnel-->level checker-->Automatic cold glue labeling machine-->Automatic film shrink packing machine/Carton packing machine-->Conveyor system

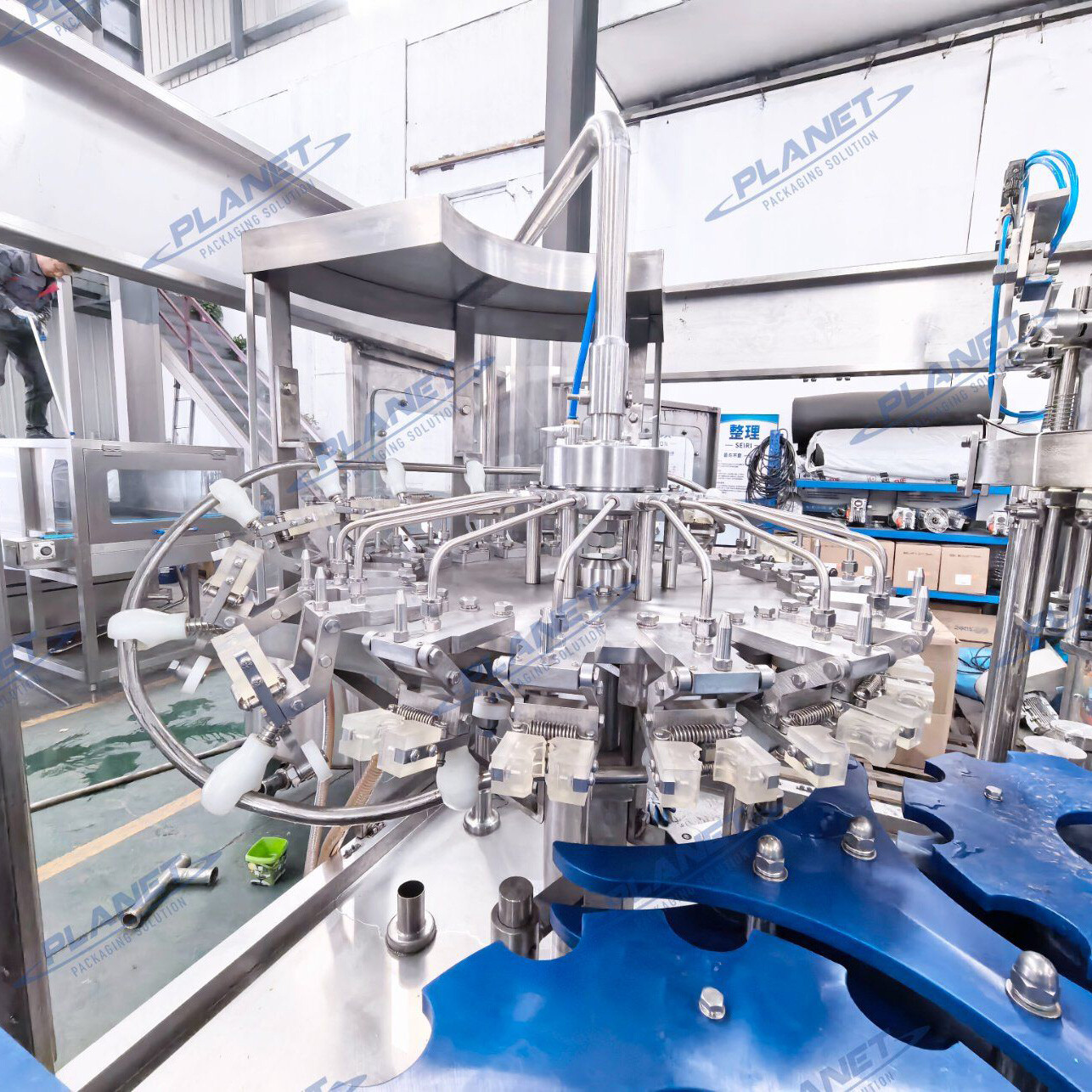

Washing Part

1. Safety and hygiene: Stainless steel 304/316L for all components.
2. Latest water-saving technology: Saving 30% water consumption.
3. Latest Machine Structure: Avoid a large amount of water accumulation inside the machine structure.
4. Strong and Durable.
5. The latest drainage design will not accumulate water.

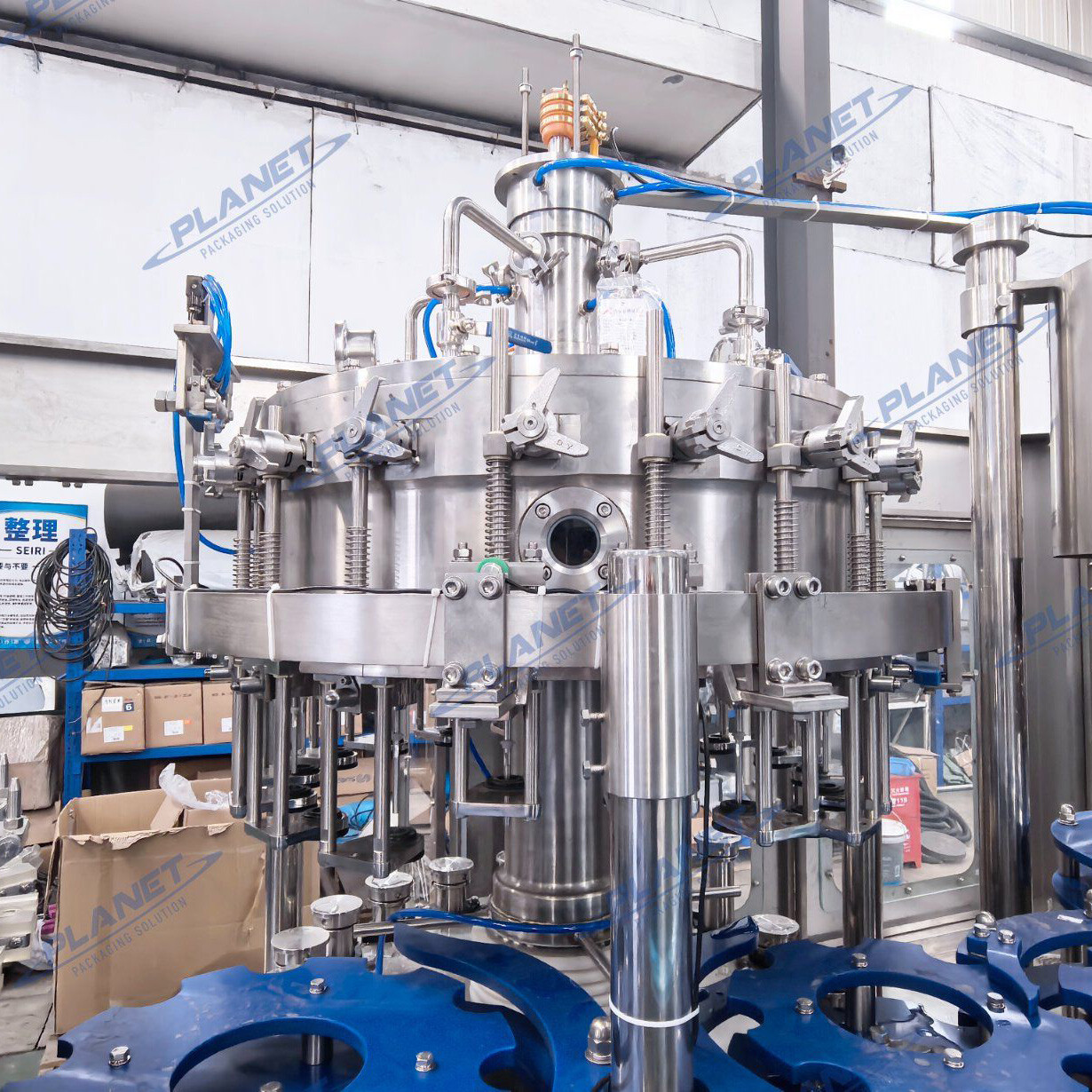

Filling Part

1. 2 times vacuum, 2 times CO2 injection.
2. No bottle , no filling.
3. Stainless Steel 304/316 high precision filling nozzle.
4. Level height can be adjusted , bought from Nanjing , the best valve in China.
5. Efficient spray nozzle rinse throughly and save water for flushing.
6. The latest drainage design will not accumulate liquid.

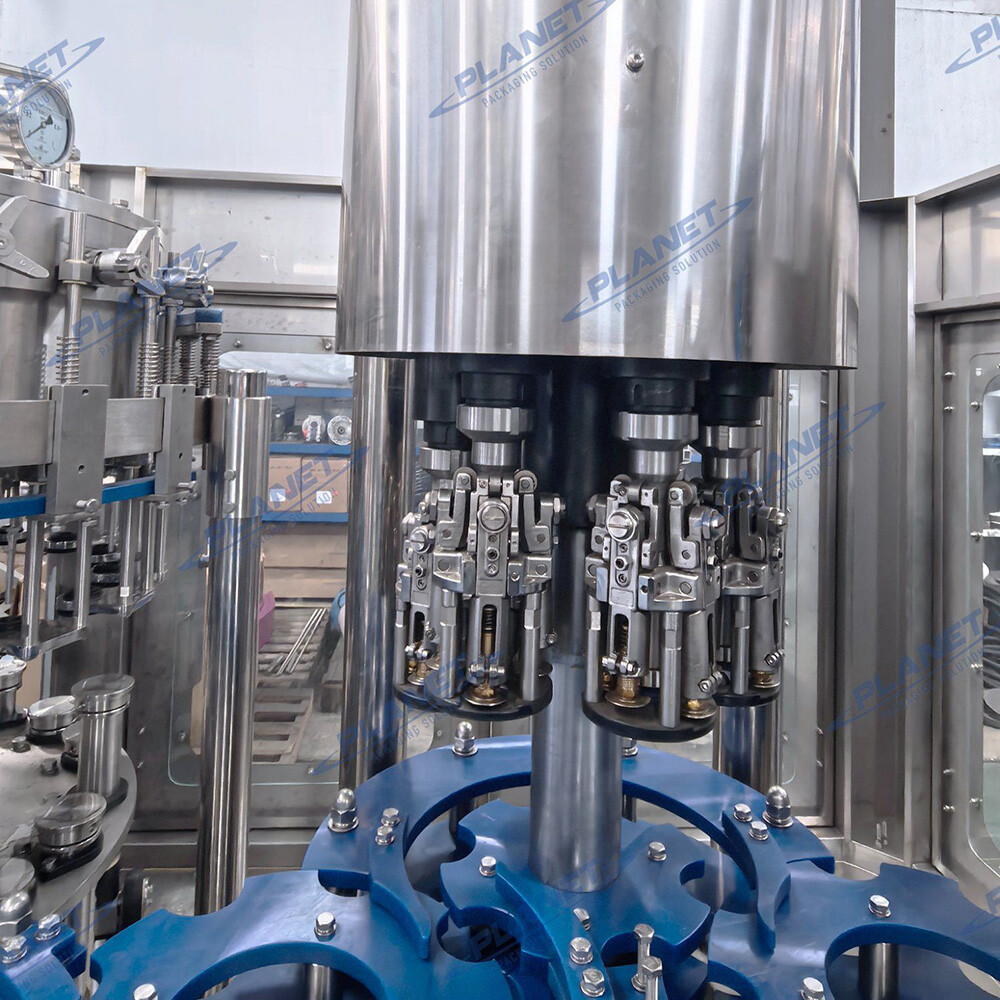

Capping Part

1.Automatic check,no bottle no capping.
2.Capping heads in stainless steel 304/316L.
3.Capping heads stop working when lack of bottle.
4.Fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of photoelectric switch, automatic stop when lighted cover rail without cover machine, can effectively avoid the occurrence of open bottle.
5.High efficiency centrifugal principle.
