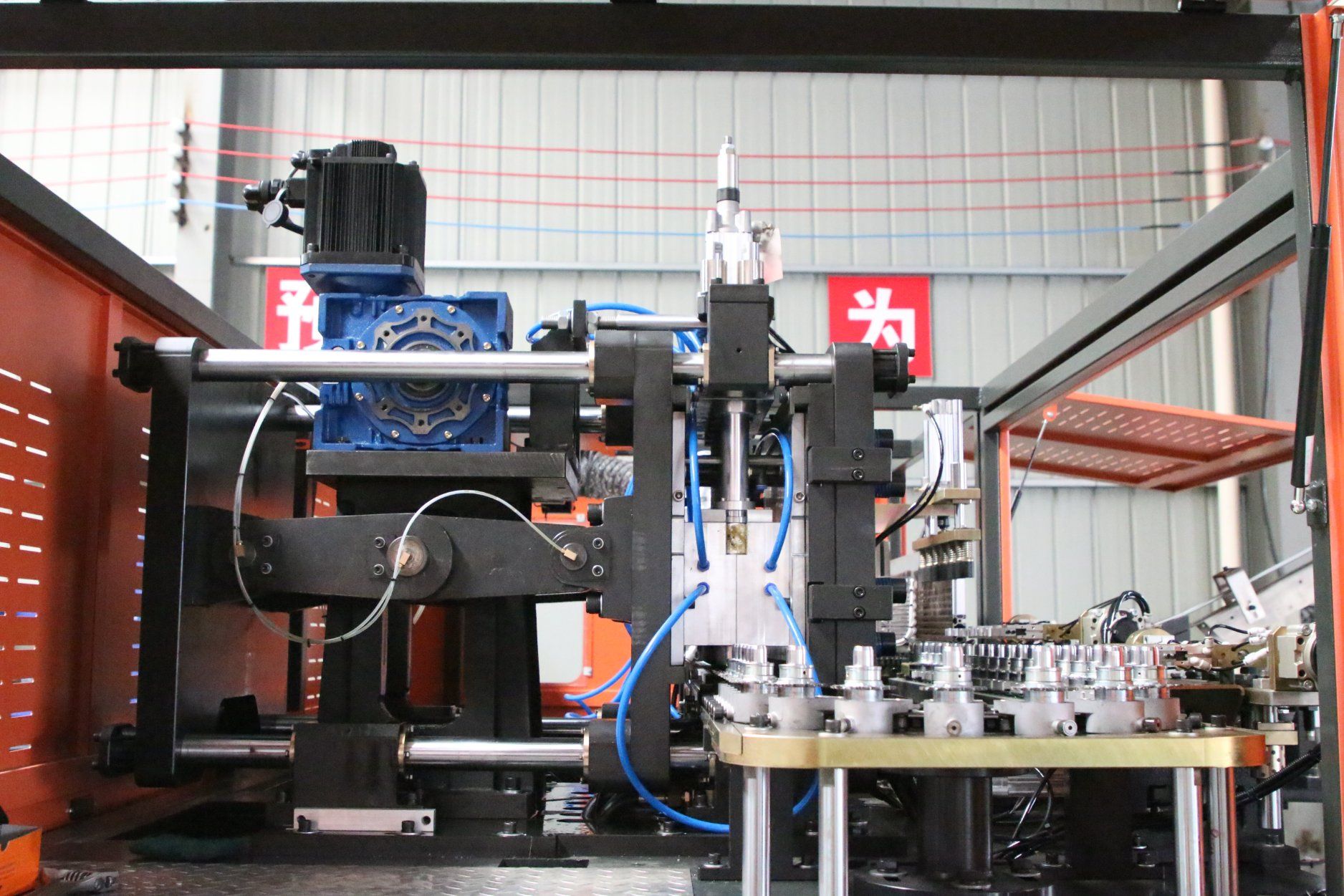

Blow Molding System
Blow molding system is characterized by its reasonable structure, lower power consumption, good stability, flexible blowing process and simple operation, especially on the production of drinking water, carbonated beverage and other common PET bottles, as well as heat-resistant bottle, mid-temperature PET bottle, sterile cold PET bottle.
GET A QUOTE
GET A QUOTE

Share:

Description
Applicable Bottle Type
Machine layout
Video

Blow Mold Machine System For Your Line From A-Z

Blow Mold Machine System For Your Line From A-Z


Blow molding system is characterized by its reasonable structure, lower power consumption, good stability, flexible blowing process and simple operation, especially on the production of drinking water, carbonated beverage and other common PET bottles, as well as heat-resistant bottle, mid-temperature PET bottle, sterile cold PET bottle.

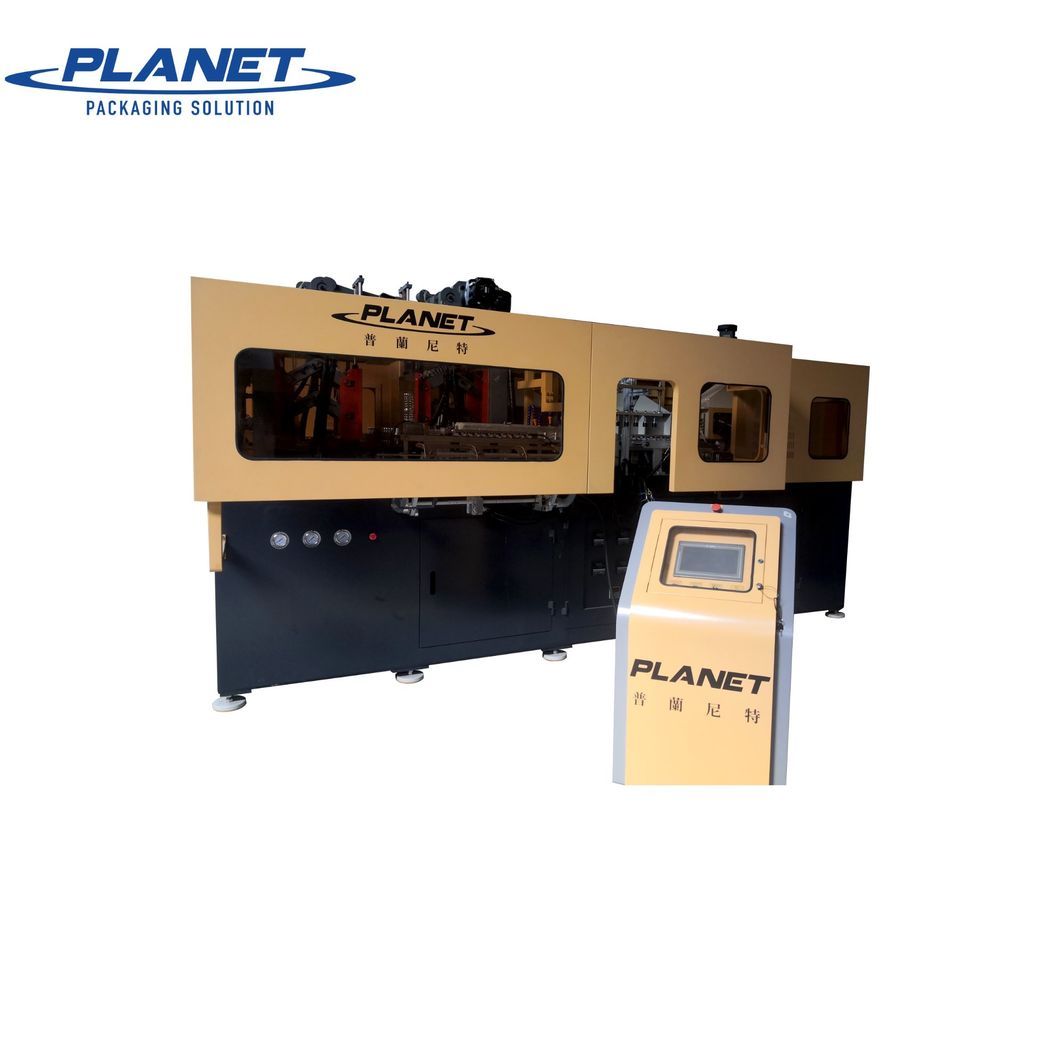

Blow Mold Machine System

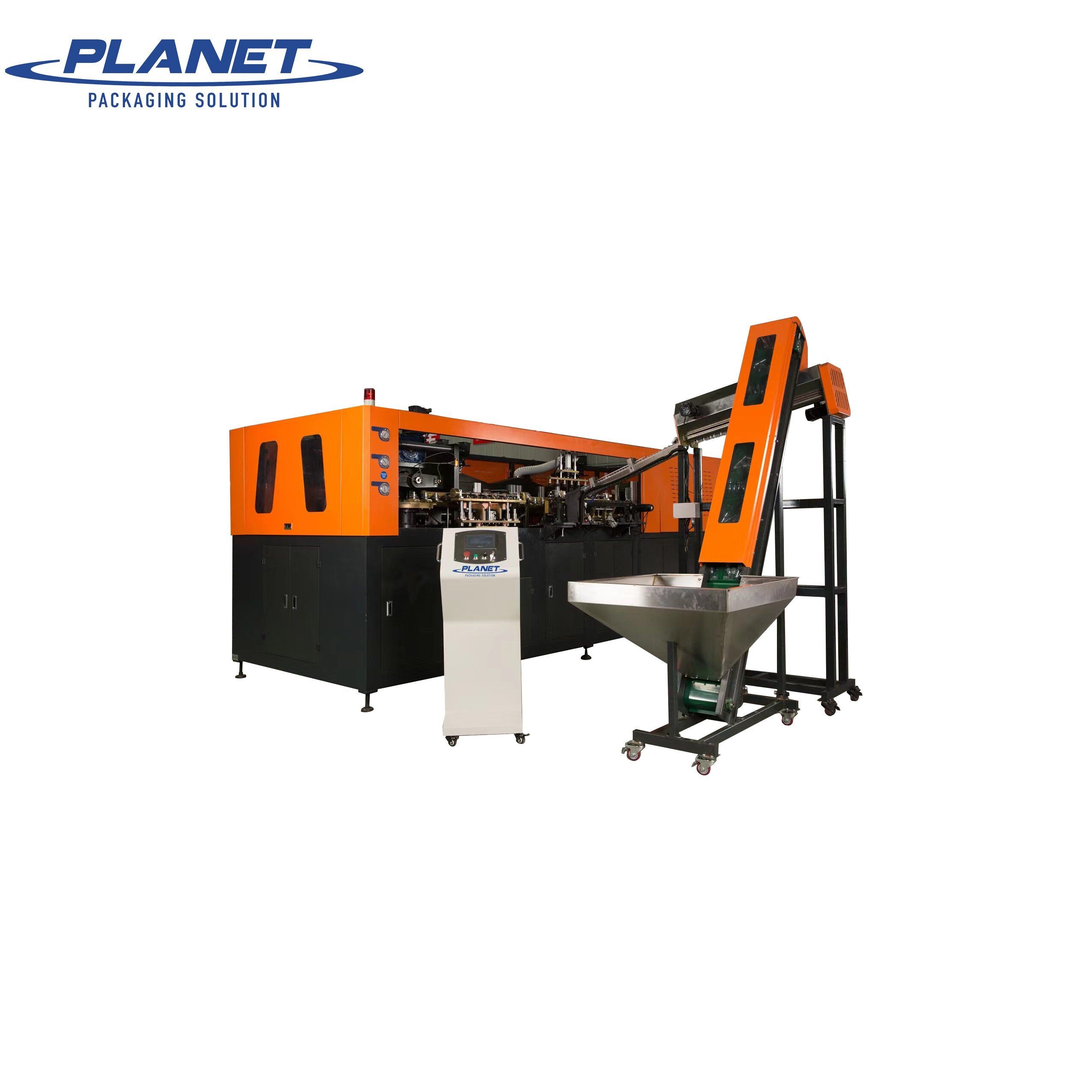

Linear automatic high speed bottle blowing machine 0.75L series


Product features

1.Accurate preform-divided

Servo driven equidistance preform-divided, safe, fast and high precision.

2.Servo mold-clamping

Servo driven mold clamp, bottom mold and mold clamping linkage, High-pressure mold-locked guarantee the bottle bloiwng speed and quality

3.Stable main transmission

  • Servo driven stretch rods and main transmission

  • Double limits

  • Stretch rods can be auto adjusted, flexible and high precision.

4. Safetly mold framework structure

Adopts drawer type structure, mold change and installation are more safe and time-saving with special auxiliary tools.

5.Intelligent operation system

Human-machine interface control system, high automation, easy opeation and safe.

6.Standardized spare parts

High-quality standarized spare parts guarantee the reliable and stability of the machines

Product Parameters

Series/Model0.75L series PM-6PM-6EPM-9EPMG-7PMG-9
       Technical parameterMaximum bottle volume0.75L0.75L0.75L0.75L0.75L
Maximum bottle diameterΦ68Φ68Φ68Φ72Φ72
Maximum bottle height245mm245mm240mm250mm230mm
Heating unit44668
Design output rate(bph)6600bph9600bph12000bph 14000bph18000bph
Number of molds66979
Service power(kw/h)24-3630-5040-6030-6045-60
Installation power(kw)   7075110110128
HP air consumption(m3/min)468710

LP air consumption(m3/min)322//
Weight (T)6.57.59.5810
Dimension(M)4.1*2.3*2.34.5*2.4*2.35.6*2.6*2.47.0*2.2*2.95.7*2.2*2.7

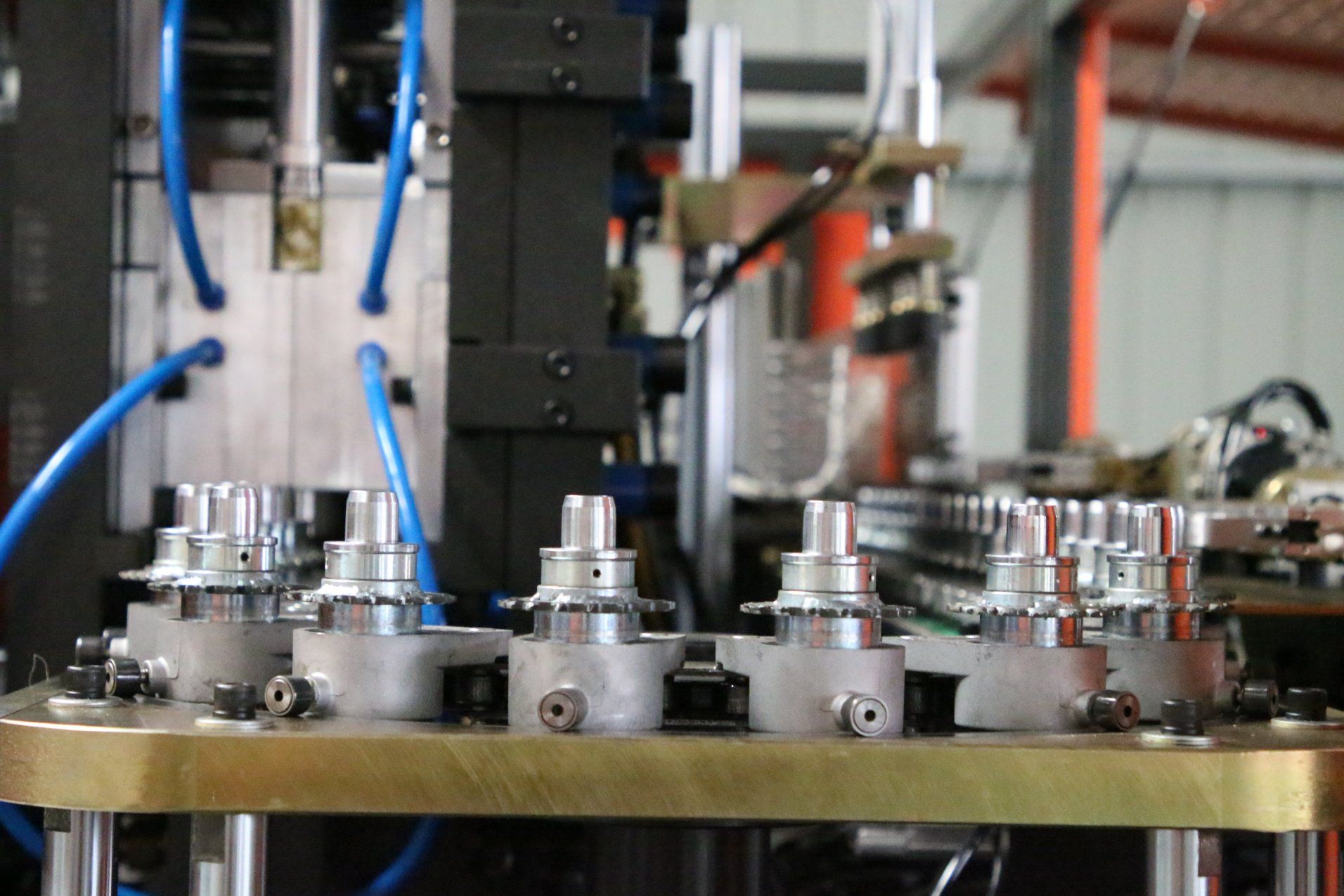

Bottle preform holder

Bottle preform holder

Made by high accurancy CNC, to guarrantee the long-term use and stable movement on the cycle of pet preform

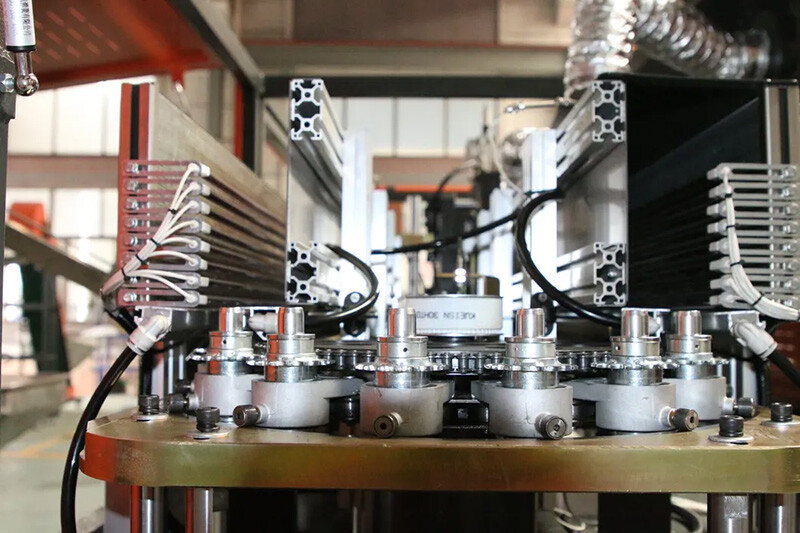

Heating Lamp

Apply with high quality Infrared lamp, to guarrantee the long-term use and low cost to do manintenance.

Heating lamp
Servo stretching mold

Servo stretching mold

The servo stretching speed is fast and the position is precise. When adjusting the stretching height, only the data of the motor needs to be adjusted, without the need for manual adjustment of the machine hardware.

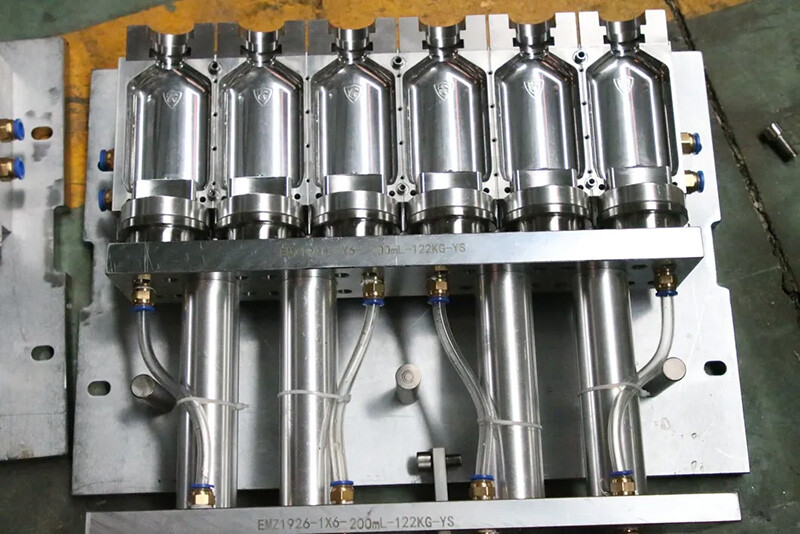

Blowing mold

The mold is made by 7075 Aluminum material, fast cooling cycle, so the bottle is shaped beautiful,highly polished,Good transparency, light mold weight, easy to change mold.

Blowing mold

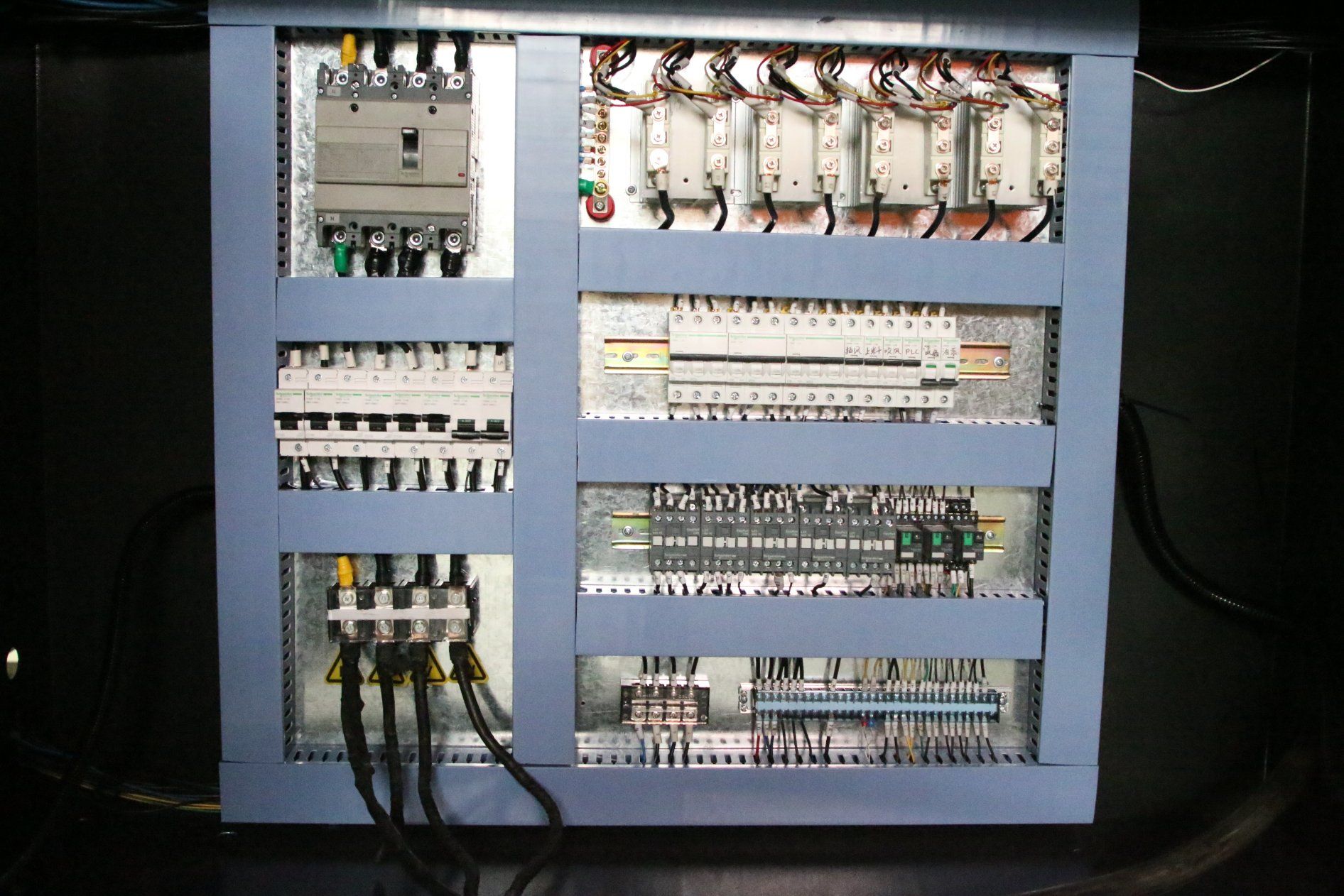

Standardized electrical design

Standardized electrical design

Professional engineer design all electrical components, and apply high quality imported and local brands, to guarrantee the stable performance of our machines.

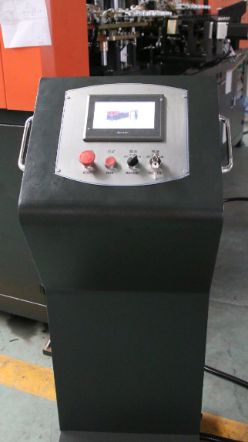

Independent control box

Whole movement is controled on the PLC on control box, easy to use and do adjustment the machine. impove the efficiency.

Independent control box
